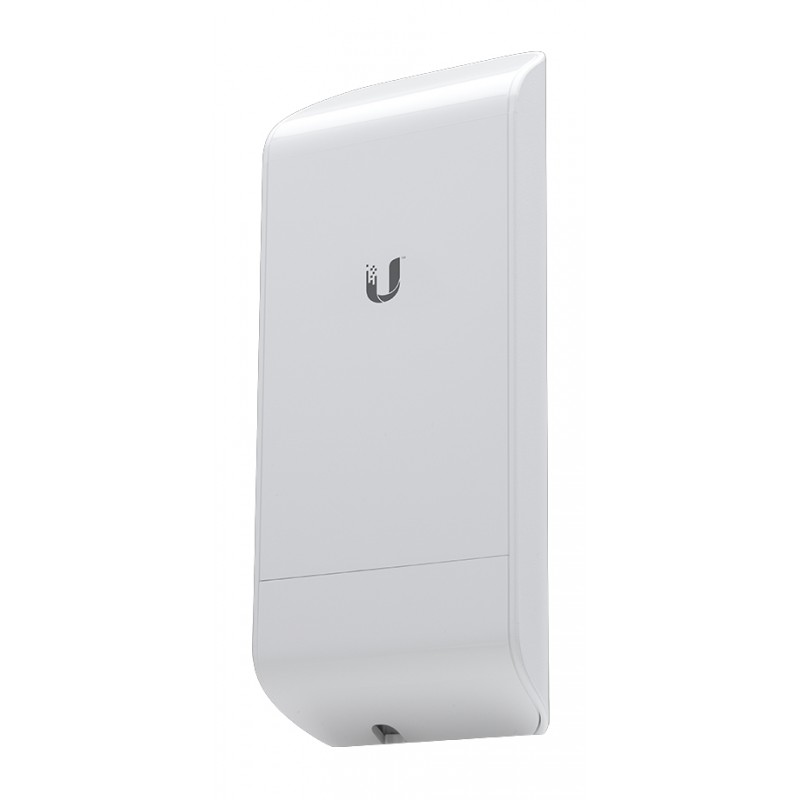

NanoStation Loco M

The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.

airMAX TDMA Protocol

airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.

Powerful Software Features

Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.

World Class Antenna Design

Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.

Antenna gain level (max)	13 dBi
Antenna type	MIMO
Cabling technology	10Base-T, 100Base-TX
Certification	FCC, IC, CE, RoHS
Compliance industry standards	IEEE802.3, IEEE802.3u
Connectivity technology	Wired
Data link protocols	TCP/IP, MIMO TDMA
Data transfer rate (max)	150 Mbit/s
Dimensions (WxDxH)	80 x 31 x 163 mm
Ethernet LAN (RJ-45) ports	1
Frequency band	5.170 - 5.875 GHz
Networking features	Fast Ethernet
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-30 - 75 °C
Power consumption (typical)	5.5 W
Power over Ethernet (PoE)	Yes
Power requirements	24V, 0.5A
Supported data transfer rates	10/100/150 Mbit/s
Weight	180 g
