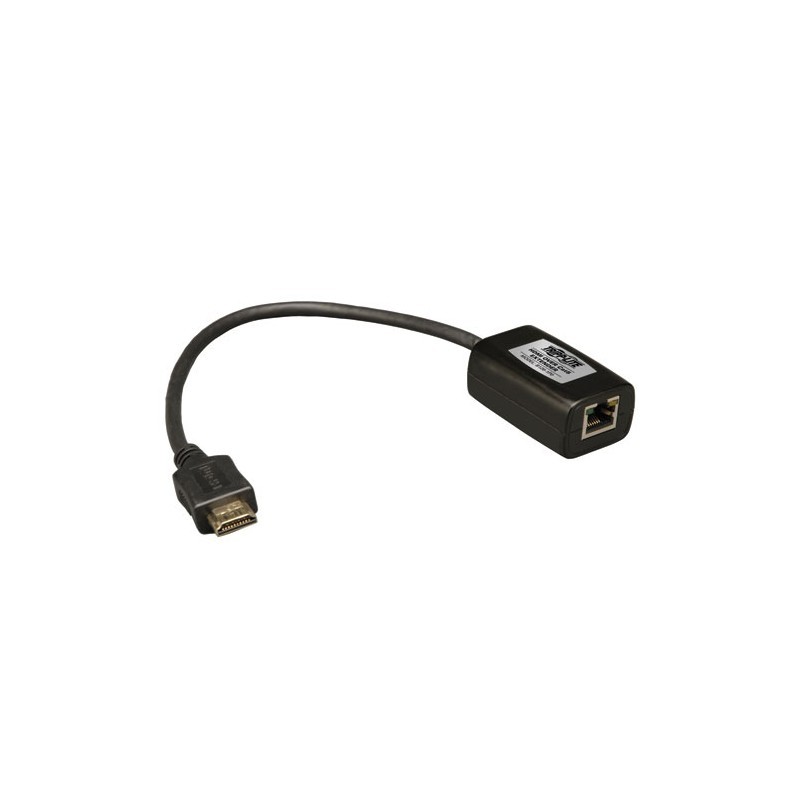

The B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite’s B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. The B126-1P0 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series) between it and the transmitter. The built-in HDMI male connector plugs directly to the monitor. No external power is required. In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.



- Supports high-definition video resolutions up to 1080p (60 Hz)

- Supports stereo and 7.1-channel surround sound audio

- Works with all operating systems and HDMI video sources

- Plug and play—no software or drivers to install

- Built-in HDMI male connector plugs directly to monitor



- Works in tandem with Tripp Lite’s B126-002 and B126-004 transmitter units

- Extends a 1080i (60 Hz) signal up to 100 ft. (30.5 m)

- Extends a 1080p (60 Hz) signal up to 50 ft. (15.2 m)

- Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)

- Built-in HDMI male connector plugs directly to monitor

- Works with all operating systems and HDMI video sources

- Supports HD resolutions up to 1080p (60 Hz)

- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter

- Supports 24-bit True Color (8 bits per channel) and HDCP

- Plug-and-play engineering—no software or drivers to download and install

- No external power required
