Batteries not Required to Operate

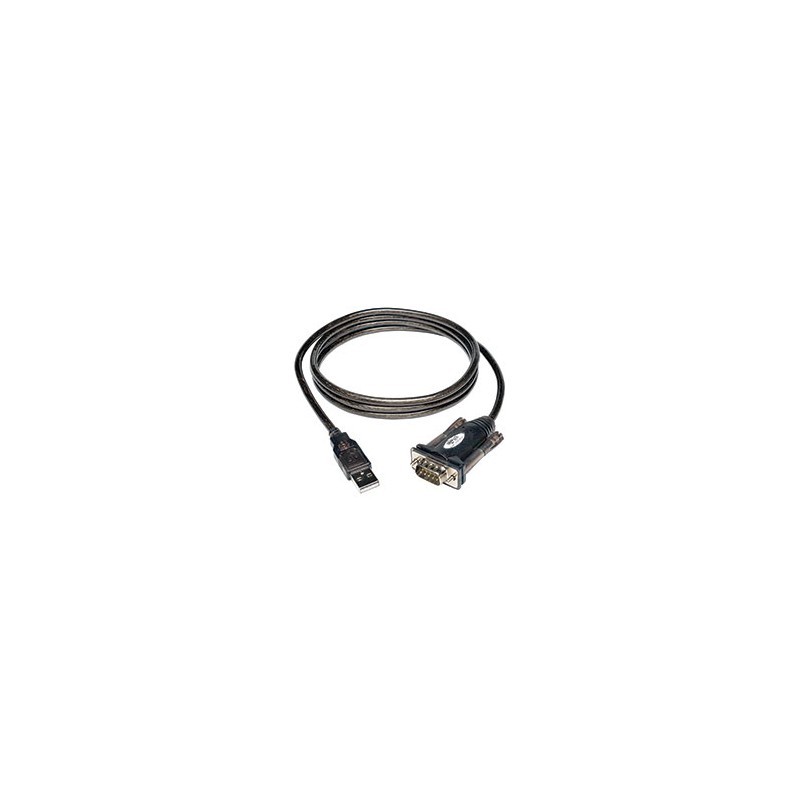

The U209-000-R USB-to-Serial Adapter Cable allows you to connect a 9-pin RS-232 serial device to a computer or laptop with a USB Type-A port. It works with modems, digital cameras, PDAs, ISDN terminals and other devices with a serial port. The U209-000-R supports data transfer speeds up to 230 Kbps—twice as fast as a built-in serial port. No external power is required, and the compact 1.52 m (5-ft.) cable tucks away conveniently in your backpack or laptop bag for easy travelling. Doubled-shielded design with gold-plated contacts, tinned copper braid and aluminum Mylar foil shield eliminates crosstalk and reduces EMI/RFI interference. Compatible with Windows 2000, XP, Server 2003, Vista, 7, Server 2008, 8, 8.1, Server 2012, and 10; Mac OS X 10.6 through 10.10; and Linux Redhat 7.3, 8.0 and 9.0. Also works with Android tablets and smartphones with the addition of a USB Host Mode (OTG) cable.

- 1.52 m (5-ft.) Length

- No external power required

- Compatible with Windows, Mac and Linux computers, and Android Tablets / Phones (See System Requirements for details)

- Need drivers? Click on the Support Page link on the left



System Requirements



- Compatible with Windows 2000, XP, Server 2003, Vista, 7, Server 2008, 8, 8.1, Server 2012, and 10

- Compatible with Mac OS X 10.6 through 10.10

- Compatible with Linux Redhat 7.3, 8.0 and 9.0 (Linux Kernel 2.4.31 and above already includes built-in drivers)

- Compatible with Android Devices (Tablets with USB Host Mode (OTG) support and Android OS version 3.2 and above. Android Devices will require a USB Host Mode (OTG) cable (such as Tripp Lite's U052-06N) to connect the U209-000-R to the device.



- U209-000-R USB-to-Serial Adapter Cable

- Owner’s Manual



- Connect a RS-232 Serial device to the USB port on your computer or Android tablet / phone

- Compatible with Android tablets / phones with USB Host Mode (OTG) support and OS version 3.2 and above

- Connectors: USB-A male/DB9 male

- Portable design is ideal for use with a PDA or digital camera

- Does not require external power

- Supports data transfer rates up to 230 kbps

- Premium double-shielded cable with tinned copper braid and aluminum Mylar foil shield that eliminates cross-talk and reduces EMI/RFI interference

- Compatible with Windows, Mac and Linux computers, and Android Tablets / Phones (See System Requirements for details)

- Prolific PL2303RA Chipset
