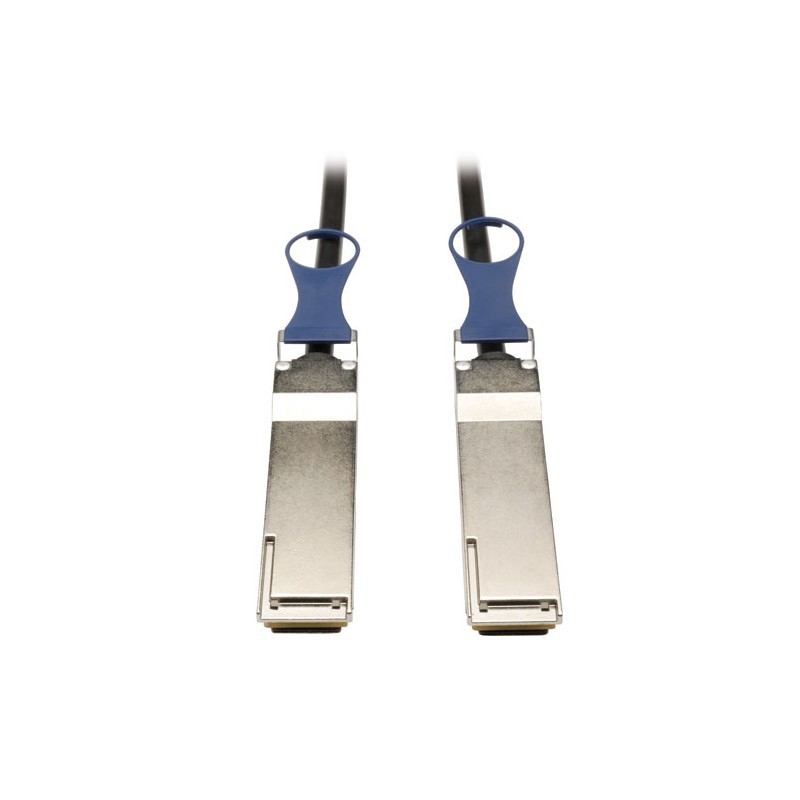

Tripp Lite's 3m QSFP+ (QSFP Plus) 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position “board-as-connector” design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 3m (9.84-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports.

- 3 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable

- Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards

- SDR, DDR, and QDR Compatible

- QSFP+ to QSFP+ 30AWG SFF-8436 compliant cable and connector

- Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )

- Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET

- Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching

- Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )

- Lower port cost and reduced power budget vs Fiber Optics
