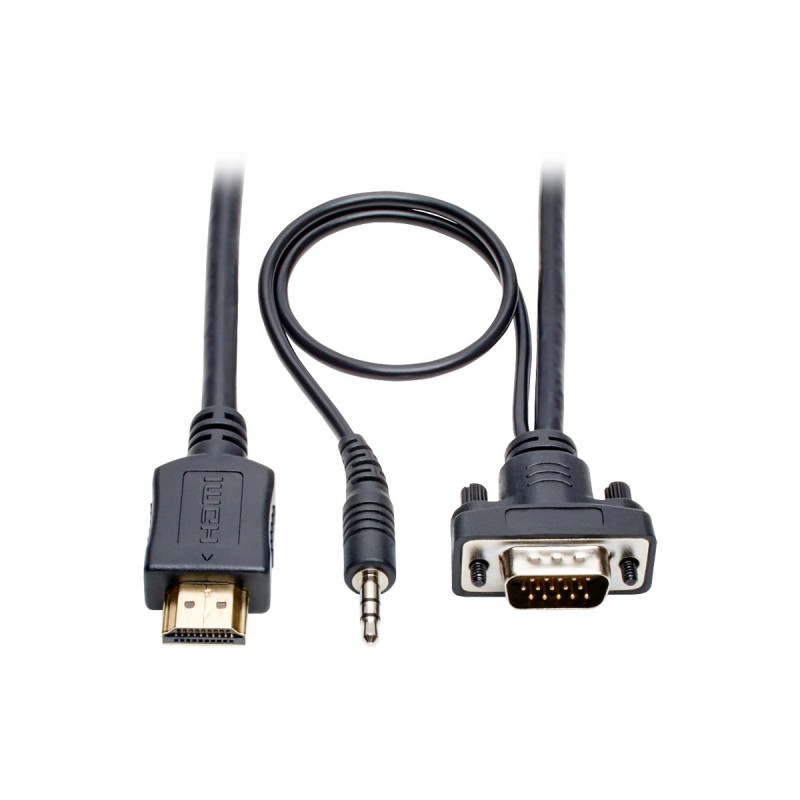

The P566-003-VGA-A HDMI to VGA + Audio Active Converter Cable connects a computer, cable box, Blu-ray™ player or other HDMI source to the VGA port on a monitor, projector or television. This allows you to use your existing VGA display instead of investing time, effort and money into upgrading to a new HDMI display. The low-profile HD15 connector fits neatly into tight spaces without jamming between the monitor and wall or blocking nearby connections. An attached 3.5 mm plug allows connection of compatible mini stereo speakers.



Ideal for displaying video on a large monitor or digital sign, this 0.91 m converter cable supports high-definition video resolutions up to 1920 x 1200 at 60 Hz. No software or drivers are required. If additional power is needed, connect a USB cable (sold separately) between the cable’s USB Micro-B port and a USB wall charger or computer port.



Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.



Send High-Definition HDMI Audio/Video Signals to a VGA Display



● Connects HDMI source to a VGA monitor, projector or TV

● Ideal for displaying video on large monitor or digital sign

● Low-profile HD15 connector fits neatly into tight spaces

● Attached 3.5 mm plug allows connection of compatible mini stereo speakers

● Plug-and-play—no software or drivers necessary



Vibrant, Superior Video Quality



● Supports HD video resolutions up to 1920 x 1200 @ 60 Hz



Superior Materials for Superior Performance



● Foil and braid shielding for reliable protection from EMI/RFI line noise

● Gold-plated HDMI connector and contacts for maximum conductivity and minimum data loss

● Integral strain relief reduces stress and adds flexibility

● Impedance-matched twisted-pair construction reduces crosstalk and interference

● USB Micro-B port provided in case additional power is needed



● Supports HD video resolutions up to 1920 x 1200 @ 60 Hz

● Gold-plated HDMI connector for maximum conductivity

● Foil and braid shielding for reliable EMI/RFI line noise protection

● Low-profile VGA connector fits neatly into tight spaces

● Plug-and-play with no software or drivers required



System Requirements



● Computer or other source with HDMI female connector

● Monitor or other display with VGA female connector

● USB Micro-B to A cable and USB power source (only if additional power is needed)



Package Includes



● P566-003-VGA-A HDMI to VGA + Audio Active Converter Cable, 0.91 m



Batteries not Required to Operate
