What This Product Does

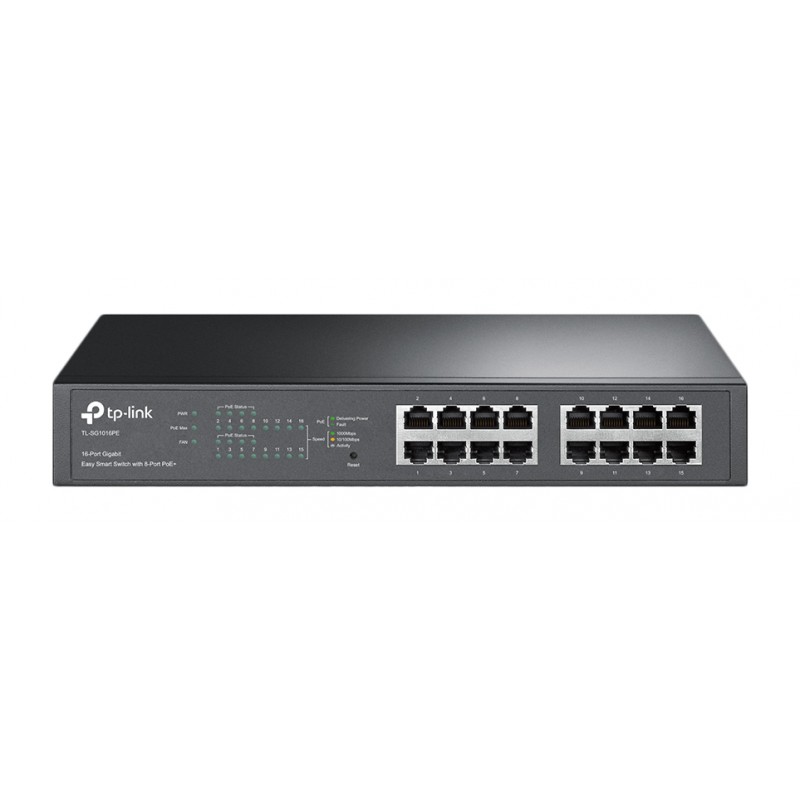

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Cables included | AC |
| Certification | FCC, CE, RoHS |
| Colour of product | Black |
| Compatible operating systems | Windows |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Flow control support | Y |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 16 |
| IGMP snooping | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| Number of queues | 4 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Port mirroring | Y |
| Power consumption (max) | 124.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Quality of Service (QoS) support | Y |
| Rack mount kit | Y |
| Rate limiting | Y |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch type | Managed |
| Switching capacity | 32 Gbit/s |
| Throughput | 23.8 Mpps |
| Total Power over Ethernet (PoE) budget | 110 W |
| VLAN support | Y |
| Web-based management | Y |
| Jumbo frames | 9000 |
| Port-based VLAN | Y |
| Loop protection | Y |
| Tagged VLAN | Y |
| Power over Ethernet (PoE) power per port | 30 W |
| Resource CD | Y |
