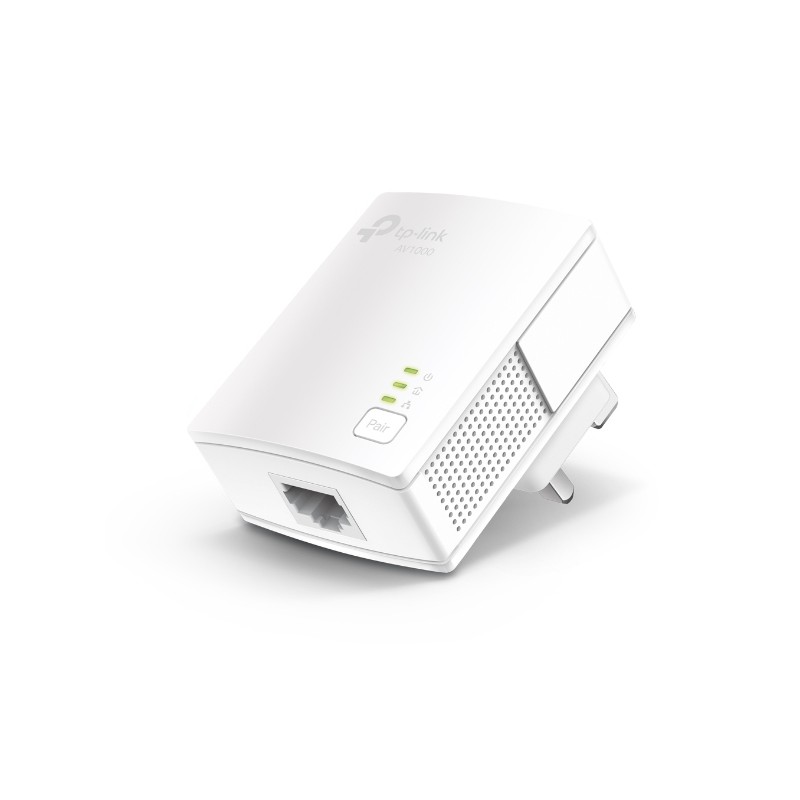

TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
  • TP-LINK AV1000 Gigabit Powerline Starter Kit
1,000 Mbps! Ideal for Flawless Streaming and Smooth Downloads

With advanced HomePlug AV2 technology, TL-PA717 KIT provides high-speed data transfer rates of up to 1,000 Mbps—ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streams, cloud gaming, and large file transfers.

TL-PA717 KIT extends the home network to every room regardless of thick walls and floors. No drilling or wire installation required.



Gigabit Port for Maximum Connectivity

With one Gigabit Ethernet port, TL-PA717 KIT allows you to connect a bandwidth-intensive device to the internet at high speeds, ensuring smooth Ultra 4K video streaming. This makes TL-PA717 KIT the perfect home entertainment companion.



Plug and Play, No Configuration Required

Connect a powerline adapter to the router, then plug another powerline adapter into a wall socket in another room. Finally, connect it to your internet-enabled device via Ethernet—and you’re done!



Reduce Power Consumption by Up to 85%

Thanks to its practical design and sophisticated Power-Saving Mode, TL-PA717 KIT—a new-generation of powerline adapter—will automatically switch from its regular "Working" mode to "Power-Saving" mode, reducing its energy consumption by up to 85%.
AC input frequency50/60 Hz
AC input voltage220 - 240 V
Antenna typeinternal
Cables includedLAN (RJ-45)
CertificationCE, RoHS
Depth52 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Height58.3 mm
LED indicatorsLAN,PLC,Power
Linux operating systems supportedY
Mac operating systems supportedY
Maximum data transfer rate1000 Mbit/s
Maximum operating distance300 m
ModulationOFDM
Networking standardsIEEE 1901,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth136 mm
Package height100 mm
Package typebox
Package weight430 g
Package width190 mm
Plug and PlayY
Power consumption (standby)0.5 W
Power consumption (typical)2.3 W
Quantity per pack2 pc(s)
Quick installation guideY
RoHS complianceY
Security algorithms128-bit AES
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Width65 mm
Windows operating systems supportedWindows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Star
Ethernet LAN interface typeGigabit Ethernet
Product colourWhite

tl-pa717kit.pdf

TP-LINK AV1000 Gigabit Powerline Starter Kit Data Sheet

Download (763.2k)
