Cables included | Phone (RJ-11) |
Certification | CE, FCC, RoHS |
Chipset | Conexant - CX93010-21Z |
Compatible operating systems | Windows 7, 8, 8.1, 10\nWindows Server 2008 R2, 2012 R2\nMac OS 10.9 - 10.10\nLinux kernel 3.16 - 4.4 |
Dimensions (WxDxH) | 27 x 77 x 20 mm |
Downstream data rate | 0.056 Mbit/s |
Interface | USB 2.0 |
LED indicators | Data |
Maximum fax transfer rate | 14.4 Kbps |
Modem (RJ-11) ports | 1 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 60 °C |
Package dimensions (WxDxH) | 136 x 163 x 32 mm |
Package weight | 200 g |
Quick start guide | Y |
Storage temperature (T-T) | -10 - 70 °C |
Supported data transfer rates | 56 Kbps Down, 36.6 Kbps Up, 14.4 Kbps Fax |
Supported protocols | Modem\nITU-T V.92 / V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A, Bell 103\n\nFax\nV.17, V.29, V.27 Ter, V.21 channel 2\n\nData\nV.44, V.42bis, MNP 5 |
Upstream data rate | 0.036 Mbit/s |
Driver included | Y |

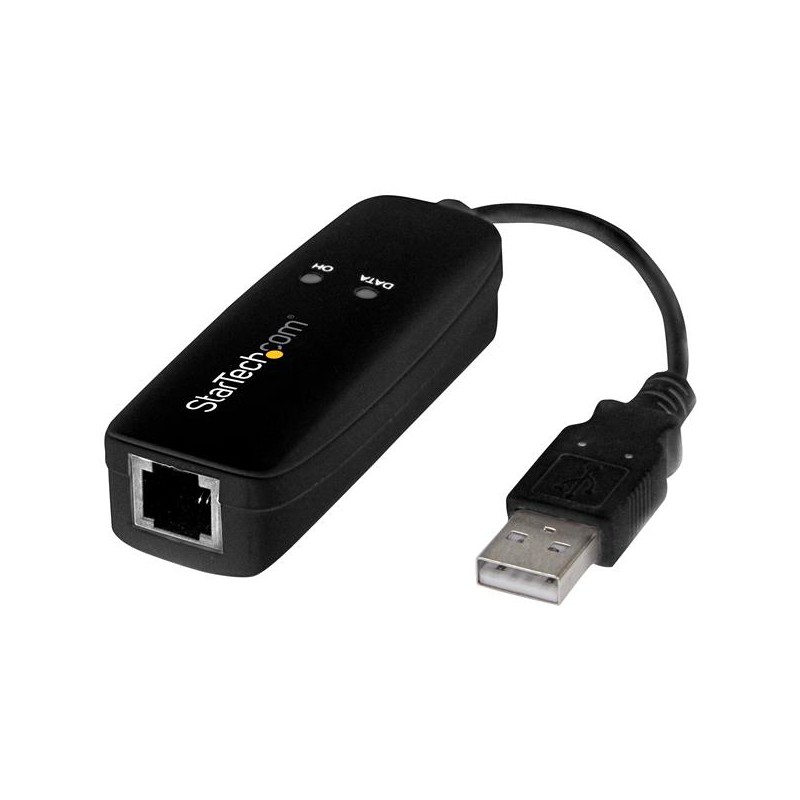

StarTech.com 56K USB Dial-up and Fax Modem - V.92 - External - Hardware Based Data Sheet
Download (144.16k)StarTech.com 56K USB Dial-up & Fax Modem - V.92, External - Hardware Based USB Modem - Transfer rates up to 56Kbps (data) / 14.4Kbps (fax)
USB56KEMH2
In Stock
