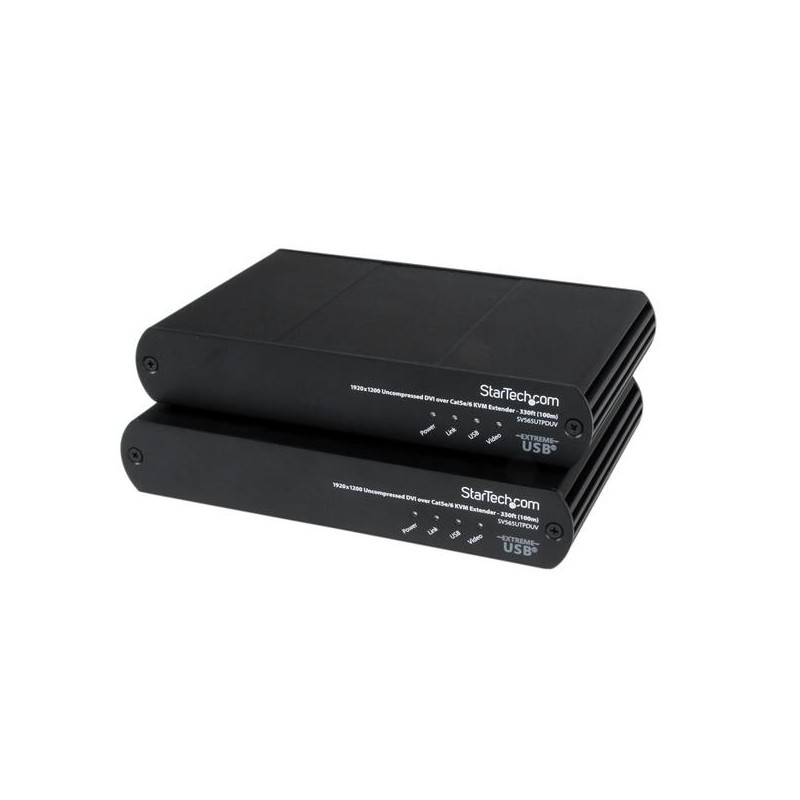

USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
  • USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
Operate a PC from up to 100m away, with uncompressed 1920x1200 DVI video and USB keyboard / mouse

The SV565UTPDUV USB DVI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1920x1200 DVI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this DVI USB extender supports uncompressed 1920x1200 video resolution at maximum distance, with 24-bit color depth.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Power a large DVI display from a distance with uncompressed 1920x1200 video
- Operate a single system or KVM switch remotely through KVM console extension
- Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling
AC adapter includedYes
Cables includedAC, DVI, USB
Colour of productBlack
DC-in jackYes
DVI-D ports quantity1
Height30 mm
Input voltage100 - 240 V
LED indicatorsLink, Power, USB
ManualYes
Maximum transfer distance100 m
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)0 - 40 °C
Quick start guideYes
RoHS complianceYes
Storage temperature (T-T)-20 - 70 °C
TypeTransmitter&receiver
Weight857 g
Width118 mm

Similar products

  • StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
    StarTech.com USB Dual VGA over Cat5 KVM...
  • StarTech.com 4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 165ft (50m)
    StarTech.com 4-Port USB...
  • StarTech.com 1-Port USB 2.0-Over-Cat5-or-Cat6 Extender Kit - 165 ft. (50 m)
    StarTech.com 1-Port USB...

StarTech.com USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)

StarTech.com USB DVI over Cat 5e/ Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m) HD KVM Extender Cat5e Cat6

SV565UTPDUV

Stock Due 01-03-2025

£1,085.73
£904.78 Ex VAT.
