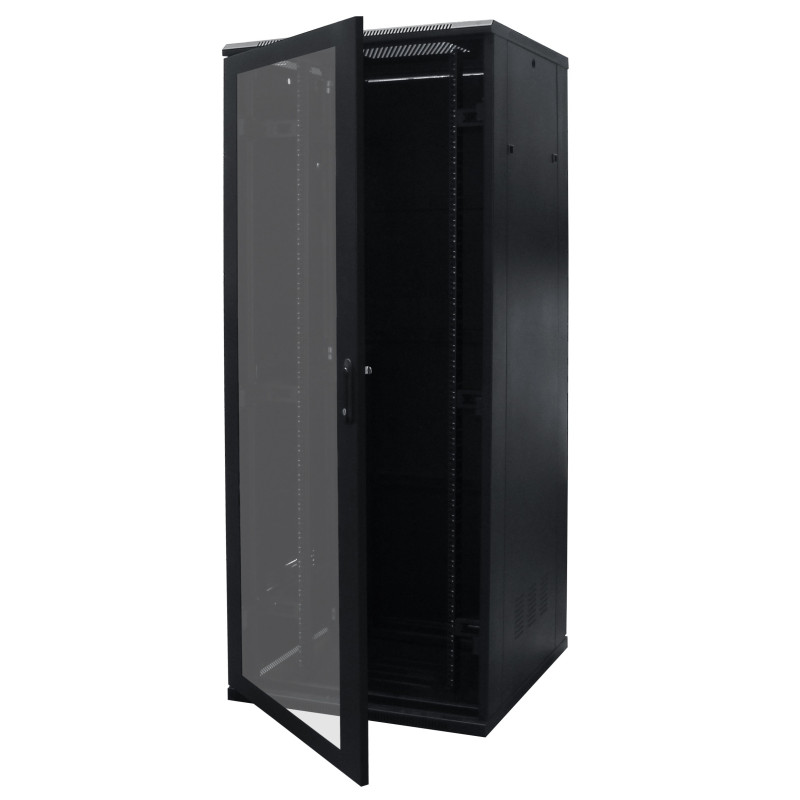

RackyRax 800mm x 800mm Data Cabinet Rear Open

The range of 19” Floor Standing Cabinets are an ideal solution for housing network hardware and patching equipment. The robust design makes them suitable for use in IT departments and offices.

The cabinets are available in various configurations and are supplied fully assembled. Each cabinet utilises a ventilated top and four 19” adjustable front and rear mounting posts. The cabinets feature lift-off sides and a lockable door for maximum access to the internal equipment, with cable access in the base for convenient routing of network cables. The side panels can be fitted with cabinet locks. The cabinet frameworks are finished in black with a lockable front door.

These 19” Floor Standing Cabinets incorporate the essential features for data communication environments - security, durable construction, easy access and protection from dust or contamination for the network equipment.



If you wish to include the Cable tray with the cabinet,  the product code you receive will be RR-CT

Features:

  •          Supplied fully assembled or flat pack
  •          Lockable Front/ Rear Doors
  •          Fully Removable Side Panels
  •          Optional Accessories including roof mount fan
  •          Adjustable mounting posts
  •          Removable side panel
  •          Cable access in base
  •          800kg static load capacity
  •          IP20
  •          25 Year System Warranty Available

A full range of accessories are available to complement the cabinet including castors, shelves and vertical cable trays.

Dimensions By U Height

U HeightSize (HxWxD)Weight
18U992x800x800 mm42.3 kg
21U1035x800x800 mm49.3 kg
24U1168x800x800 mm56.4 Kg
27U1303x800x800 mm63.4 Kg
39U1835x800x800 mm91.6 Kg
42U1970x800x800 mm98.8 Kg
45U2103x800x800 mm105.7 Kg

Cable EntryTop & Bottom
Depth800mm
Internal Working Depth680mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsRemovable
Width800mm
