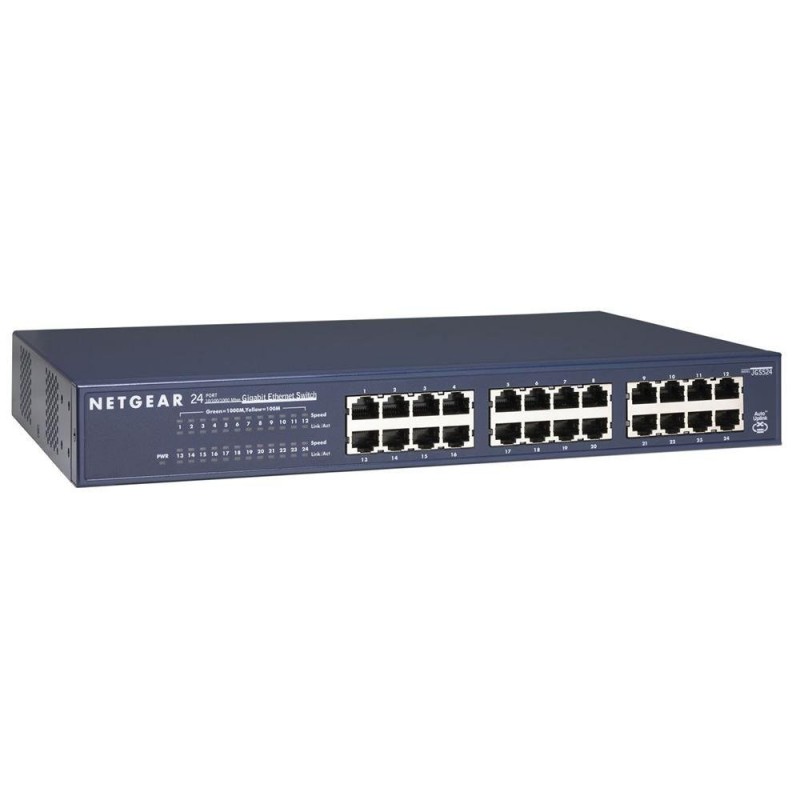

Netgear ProSafe JGS524
The affordable price of NETGEAR’s JGS524 enables you to cost-effectively deliver Gigabit Ethernet networking speeds across your entire office network – even directly to the desktop. With up to 48 Gbps of bandwidth, this 24-port switch can send 2000 Mbps per port. Network users can take advantage of the their ability to send and receive large amounts of multimedia, image and video information in no time at all. The JGS524 is ideal for teams, departments or growing offices requiring outstanding performance at a low price.



-Gigabit speeds meet performance needs of bandwidth hungry applications.

-Easy integration of 10, 100, and 1000 Mbps devices.

-Automatic speed and full/half-duplex sensing on every port.

-Auto Uplink™ on every port to ensure correct link for different cables.

-LED’s make network monitoring easy.

-Compact enough for desktop, but comes with a rack mount kit.

-Compatible with PC, Macintosh, Linux and Unix operating systems.
Basic switching RJ-45 Ethernet ports quantity24
CertificationCE, FCC 15 A, VCCI A, EN 55022 (CISPR 22) A, EN 50082-1, EN 55024, C-Tick
Colour of productBlue
Connectivity LEDsYes
Connectivity technologyWired
Dimensions (WxDxH)330 x 207 x 43 mm
Flow control supportYes
Full duplexYes
Latency20 µs
MAC address table8000 entries
ManagementUnmanaged
Maximum data transfer rate2 Gbit/s
Mean time between failures (MTBF)87600 h
MountingRackmount
Networking standardsIEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Noise level40 dB
Operating relative humidity (H-H)5 - 90 %
Operating relative humidity range5 - 90 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
PoENo
Ports quantity24
Power consumption (typical)40 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power requirements100~240V; 50-60Hz;
Rack mountingYes
RJ45 Ports Qty24
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)10 - 95 %
Storage relative humidity range10 - 95 %
Storage temperature (T-T)-20 - 70 °C
Storage temperature range (T-T)-20 - 70 °C
Supported data transfer rates10/100/1000 Mbps
Switch SpeedGigabit
Switch typeUnmanaged
Switching capacity48 Gbit/s
Weight2400 g
