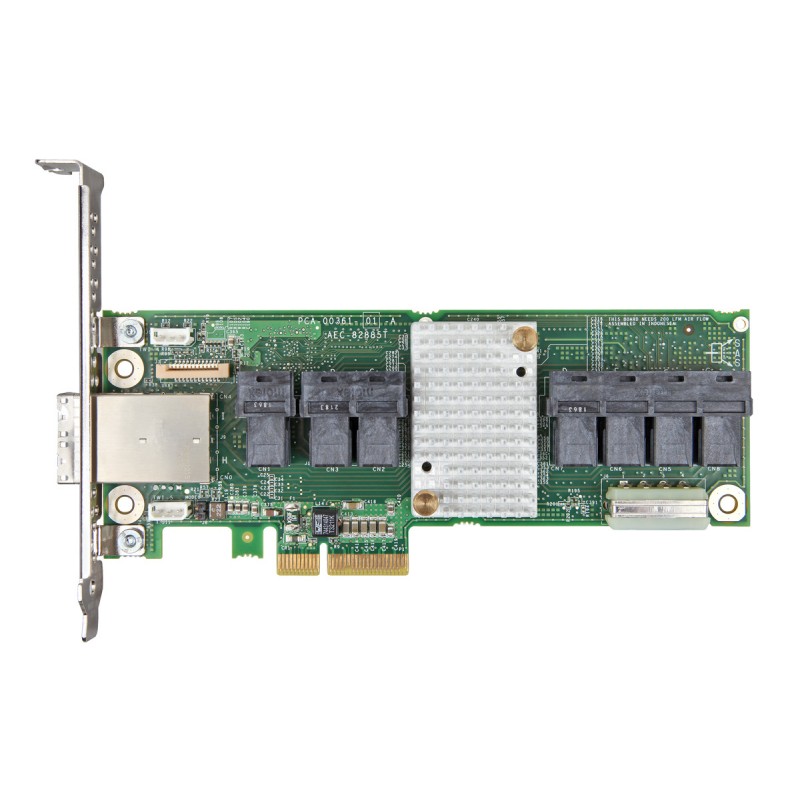

Intel RES3FV288
  • Intel RES3FV288
  • Intel RES3FV288
  • Intel RES3FV288
28 internal port and eight external port, 12-Gb/s capable expander card for use with Intel® RAID products.
CompatibilityIntel Server System R1208WT2GS\nIntel Server System R1208WTTGS\nIntel Server System R1304WT2GS\nIntel Server System R1304WTTGS\nIntel Server System R2208WT2YS\nIntel Server System R2208WTTYC1\nIntel Server System R2208WTTYS\nIntel Server System R2224WTTYS
Data transfer rate12288 Mbit/s
Depth167.6 mm
External mini-SAS ports8
Form factorLow Profile MD2 Card
Host interfacePCI Express x4
Internal memory8 MB
Internal mini-SAS ports20
Operating temperature (T-T)0 - 55 °C
Packaging content(1) Expander board and (2) short cables to connect to a RAID card or module
PCI Card form factorfull-height (low-profile)
Product type16
RAID levelsJBOD
Supported storage drive interfacesSAS,Serial ATA
Sustained data transfer rate (native)12288 MB/s
Voltage12 V
Width63.5 mm
Born on dateQ2 '14
Launch date2014-06-26T00:00:00
Market segmentSRV
Product nameIntel RAID Expander RES3FV288
StatusLaunched
PCI Express host interfacePCIe x4 power only
Internal ports28
Supported devicesSAS/SATA
RAID ARK ID81277
External ports8

RES3FV288.pdf

Intel RES3FV288 Data Sheet

Download (997.37k)

Similar products

  • Intel Intel® Virtual RAID on CPU (Intel® VROC) - Premium
    Intel Intel® Virtual RAID on CPU (Intel®...
  • Intel Intel® Virtual RAID on CPU (Intel® VROC) - Standard
    Intel Intel® Virtual RAID on CPU (Intel®...
  • Intel Intel® Virtual RAID on CPU (Intel® VROC) – Intel SSD Only
    Intel Intel® Virtual RAID on CPU (Intel®...
  • Intel Intel® RAID Maintenance Free Backup AXXRMFBU7
    Intel Intel® RAID Maintenance Free Backup...

Intel RES3FV288

RAID Expander RES3FV288

RES3FV288

Out of Stock

£292.65
£243.88 Ex VAT.
