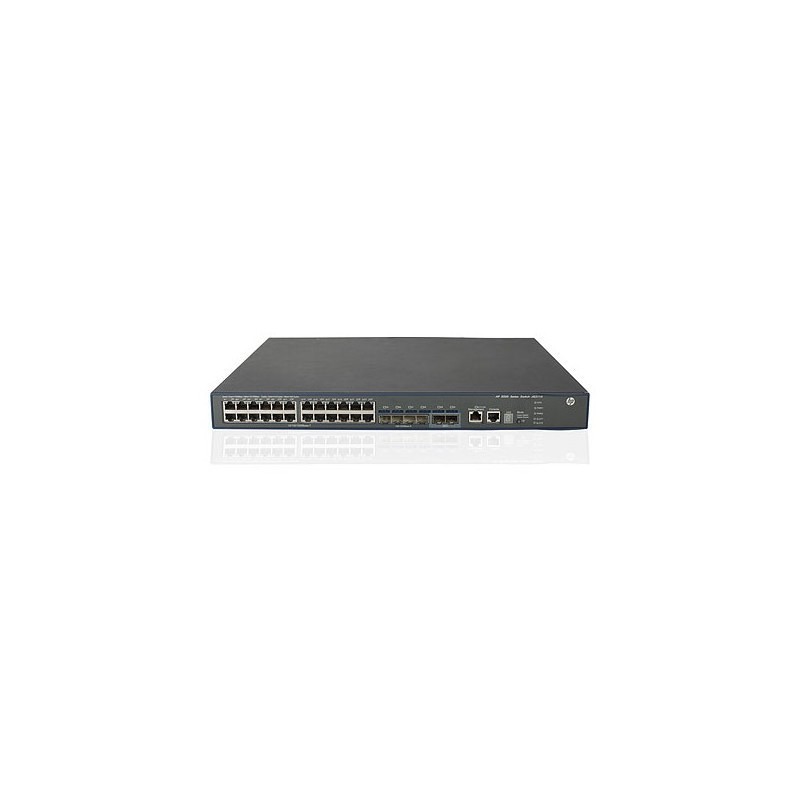

HP 5500-24G-4SFP HI Switch with 2 Interface Slots
The HP 5500 HI Series of Gigabit Ethernet switches delivers outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. The HP 5500 HI Switch Series supports a dual power supply and an IRF virtual fabric to provide the highest levels of resiliency and manageability. With complete IPv4/IPv6 and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed with two fixed 10G ports and extension flexibility, these switches can provide up to six 10-GbE uplink or 70 GbE ports.



- High expandability for investment protection

- Premium resiliency and integrated management

- Enhanced MPLS/VPLS support

- Full-featured IPv4/IPv6 dual stack

- Dual power supplies for high resiliency

AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Acoustic pressure emissions47.9 dB
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Colour of productBlack
Depth439.9 mm
Dimensions (WxDxH)359.9 x 439.9 x 43.7 mm
Flash memory512 MB
Form factor1U
Heat dissipation481 BTU/h
Height43.7 mm
I/O ports2 x SFP+
Input frequency50 - 60 Hz
Internal memory1024 MB
Latency5 µs / 3 µs
LED indicatorsYes
MAC address table12000 entries
Maximum data transfer rate1 Gbit/s
Memory and processor1 GB SDRAM, packet buffer size: 3 MB, 512 MB flash
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating altitude0 - 3000 m
Operating relative humidity (H-H)15 - 95 %
Operating relative humidity range5 to 95 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Packet buffer memory3 MB
Power consumption (typical)141 W
Power LEDYes
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyUL 60950-1; EN 60825-1 1; EN 60825-2 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchpter; ROHS
SFP/SFP+ slots quantity4
Source data-sheetIcecat.biz
Storage relative humidity (H-H)15 - 95 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Supported data transfer rates10/100 Mb/s
Switch layerL3
Switching capacity176 Gbit/s
Throughput130.9 Mpps Mpps
VLAN supportYes
Weight7500 g
Width359.9 mm
SFP module slots quantity4
SFP+ module slots quantity2
