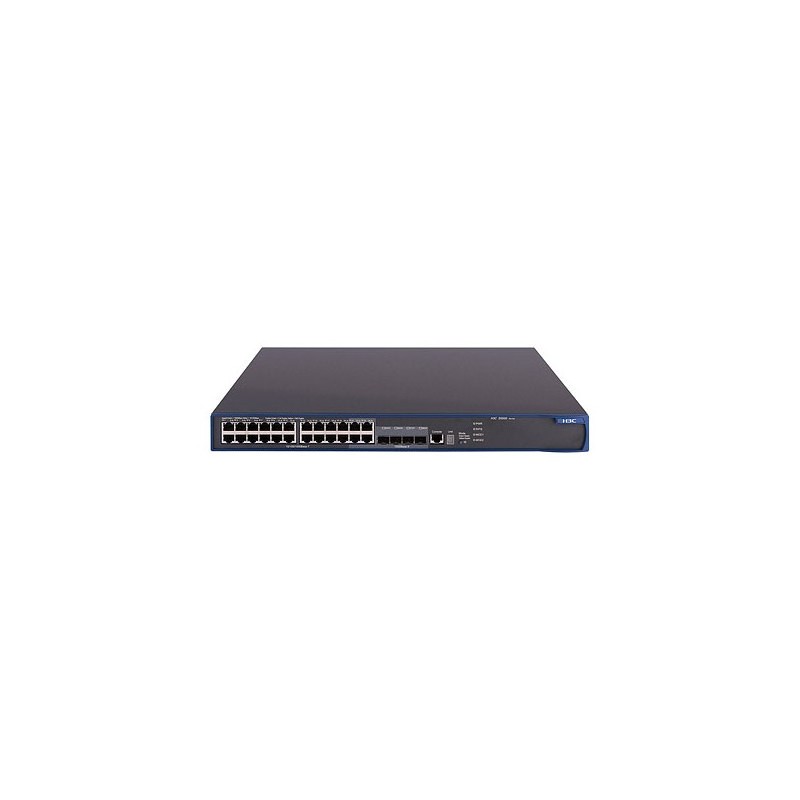

HP A5500 EI Switch Series
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks or in the core layer of SMB networks. The HP A5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual stack support, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed for increased flexibility, these switches are available with 24 Gigabit Ethernet ports.
Key features
- High expandability for investment protection;
- Premium security and integrated management;
- Multilayer reliability;
- Convergence-ready support;
- Outstanding quality of service (QoS).
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks or in the core layer of SMB networks. The HP A5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual stack support, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed for increased flexibility, these switches are available with 24 Gigabit Ethernet ports.
Key features
- High expandability for investment protection;
- Premium security and integrated management;
- Multilayer reliability;
- Convergence-ready support;
- Outstanding quality of service (QoS).
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Broadcast storm control | Yes |
| Certification | FCC, VCCI, CISPR 22, ICES, ANSI, ETSI, AS/NZS, EMC, WEEE |
| Colour of product | Grey |
| Connectivity technology | Wired |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T |
| Depth | 300 mm |
| Dimensions (WxDxH) | 300 x 440 x 43.6 mm |
| Electromagnetic compatibility | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports quantity | 24 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flash memory | 32 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Heat dissipation | 375 BTU/h |
| Height | 43.6 mm |
| IGMP snooping | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Internal memory | 256 MB |
| IP routing | Yes |
| Jumbo frames support | Yes |
| Latency | 2.6 |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address filtering | Yes |
| MAC address table | 32000 entries |
| Management protocols | LLDP, STP, NTPv3, SNMPv1/v2c/3, RMON, SSHv1/SSHv2 |
| Manual | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Memory type | SDRAM |
| MIB support | MIB II, BGP-4, RIPv2, OSPFv2, SNMPv2, IPV6-TCP, IPV6-UDP, VRRP, RMON |
| Multicast support | Yes |
| Networking features | Gigabit Ethernet |
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 32 - 113 °F |
| Operating temperature range (T-T) | 0 - 45 °C |
| Packet buffer memory | 2 MB |
| Port mirroring | Yes |
| Power consumption (typical) | 110 W |
| Power LED | Yes |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Routing entries | 12000 |
| Safety | UL, EN, IEC, CAN/CSA, FDA, ROHS |
| Security algorithms | 802.1x RADIUS,SSH |
| SFP/SFP+ slots quantity | 4 |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| Stackable | Yes |
| Static port security | Yes |
| Storage relative humidity (H-H) | 5 - 59 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 158 °C |
| Supported data transfer rates | 10/100 Mbit/s |
| Supported network protocols | IP, DNS, TFTP, UDP, ICMP, TCP, VRRP, BOOTP, Telnet, GPRP, MLD/MLDv2, MTU, ICMPv6, RRPP, IRF, ARP |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 144 Gbit/s |
| System event log | Yes |
| Throughput | 107.2 mpps Mpps |
| User guide | Yes |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 4000 g |
| Width | 440 mm |
| Wireless LAN connection | Yes |
| SFP module slots quantity | 4 |
Similar products
-
Hewlett Packard Enterprise 5500-24G-PoE+EI
Hewlett Packard Enterprise 5500-24G EI
1U, Gigabit Ethernet, Mng, L2/3, 24 x RJ-45, 4 x Combo, 2 x Slots, 256MB/32MB, 32K MAC, 4kg, Grey
JD377A
Out of Stock
£3,813.35
£3,177.79 Ex VAT.
