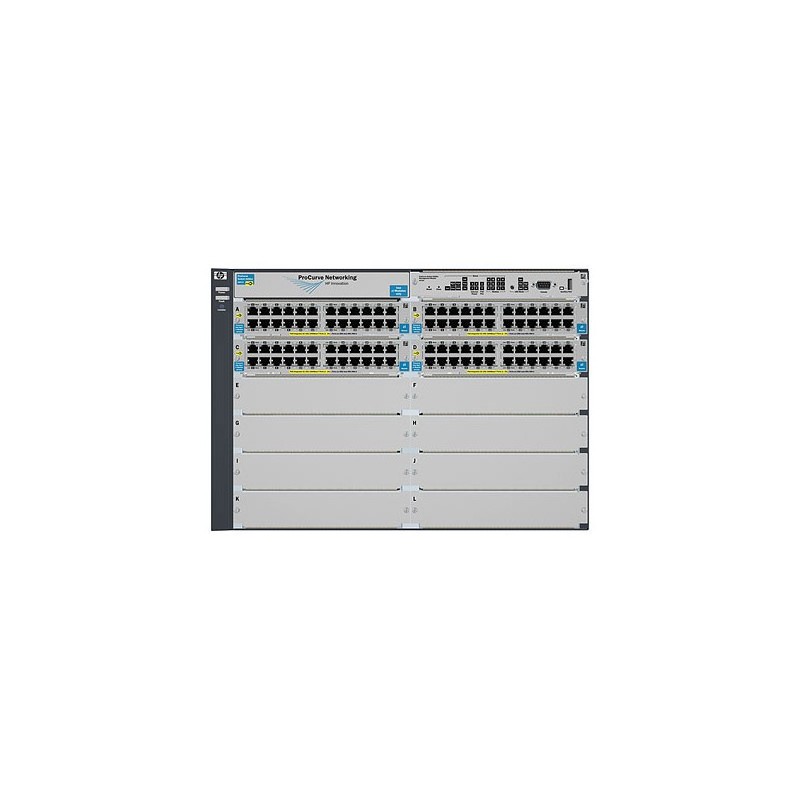

The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
| 10G support | Yes |
| Access Control List (ACL) | Yes |
| Acoustic pressure emissions | 57.5 dB |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 92 |
| Broadcast storm control | Yes |
| Built-in processor | PowerPC 8540 |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T |
| Data link protocols | LLDP |
| DHCP client | Yes |
| DHCP server | Yes |
| Dimensions (WxDxH) | 450.9 x 444.5 x 307.3 mm |
| Electromagnetic compatibility | FCC, VCCI, EN/CISPR |
| Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5 |
| Flash memory | 128 MB |
| Flow control support | Yes |
| Form factor | 7U height |
| Full duplex | Yes |
| Heat dissipation | 7400 BTU/h |
| Heat dissipation note | (max. non-PoE); 7400 BTU/hr (7807 kJ/hr) (max. using PoE) |
| I/O ports | 92 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 open mini-GBIC |
| IGMP snooping | Yes |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Internal memory | 256 MB |
| IP routing | Yes |
| Latency | 3.7µs/2.1µs |
| Link aggregation | Yes |
| MAC address filtering | Yes |
| MAC address table | 64000 entries |
| Management platform | HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C) |
| Management protocols | IGMPv3, SNMPv1/v2c/v3, XRMON |
| Maximum data transfer rate | 1 Gbit/s |
| Memory and processor | Gigabit Module: ARM9 @ 200 MHz, packet buffer size: 144 Mb QDR SDRAM; 10G Module: ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management Module: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash Mb, 128 MB compact flash, 256 MB DDR SDRAM |
| Memory type | DDR |
| MIB support | MLDv1 MIB, MIB II, Bridge MIB, RIPv2 MIB, OSPFv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, VRRP MIB, Ping MIB |
| Mounting | EIA |
| Multicast support | Yes |
| Networking features | Gigabit Ethernet |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x |
| Noise level | 64 dB |
| Number of power supply units | 2 |
| Number of VLANs | 2048 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating relative humidity range | 15 to 95 @ 131°F |
| Operating temperature (T-T) | 32 - 131 °F |
| Operating temperature range (T-T) | 0 - 55 °C |
| Packet buffer memory | 4 MB |
| Power consumption (typical) | 312 W |
| Power over Ethernet (PoE) | Yes |
| Power requirements | Two J9306A are installed. Two open power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices thems |
| Power supply | 1500 W |
| Power supply type | 2 x J9306A |
| Processor frequency | 666 MHz |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Routing entries | 10000 |
| Safety | CSA, UL, IEC, EN |
| Security algorithms | 802.1x RADIUS,SSH,SSL/TLS |
| SFP/SFP+ slots quantity | 4 |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Storage relative humidity (H-H) | 15 - 95 % |
| Storage relative humidity range | 15 to 95 @ 149°F |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Supported data transfer rates | 10/100 Mbps |
| Supported network protocols | IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP, CIDR, SNTP |
| Switch fabric speed | 758.4 Gbps |
| Switch type | Managed |
| Switching capacity | 758.4 Gbit/s |
| Switching protocols | RIPv1 |
| Throughput | 564.2 mpps Mpps |
| Weight | 33960 g |
| Wi-Fi | No |
| SFP module slots quantity | 4 |
| Weight (imperial) | 74.86 lbs |
| Dimensions (W x D x H) (imperial) | 17.5 x 17.75 x 12.1 " |
