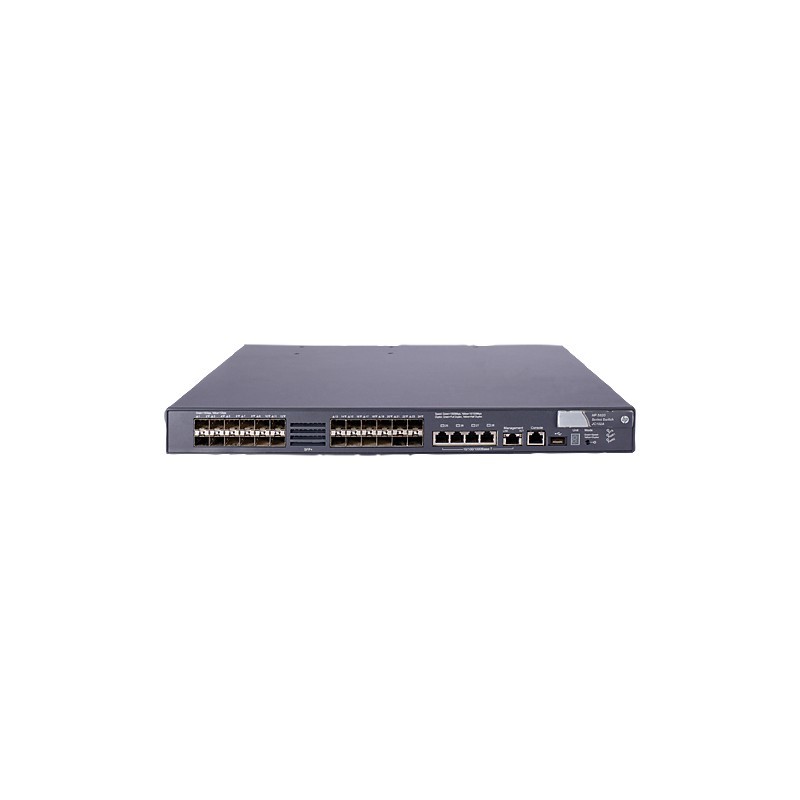

Hewlett Packard Enterprise 5820X-24XG-SFP+
  • Hewlett Packard Enterprise 5820X-24XG-SFP+
  • Hewlett Packard Enterprise 5820X-24XG-SFP+
  • Hewlett Packard Enterprise 5820X-24XG-SFP+
The HP 5820 Switch Series provides a versatile and high-performance, 1/10GbE top-of-rack, data center switch architecture that offers you deployment flexibility. With a choice of models that supports high performance and low latency, you can deploy switches that are best suited to you needs.



While IRF reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the 5820 Switch Series to deliver high performance and lower TCO, while delivering business resilience and high availability.



Features



Versatile Data Center Switches

- The HP 5820 Switch Series is available in several models offering flexible 10GbE and 1/10GbE deployments designed for the top-of-rack within the data center.

- Models offer 14 ports, or 24 ports for high-performance applications.

- Provides a RJ45, SFP+ server connectivity and expansion slot for application modules.



High-Performance Gigabit Data Center Switching

- The HP 5820 Switch Series delivers 484-488 Gbps switching capacity.

- It supports up to 360-383 mpps throughput.

- Low latency for cut-through and store-and-forward traffic— 2.02-3µs using 64 bytes packets.



Business Agility and Resilience with Comware 7

- The HP 5820 Switch Series delivers IRF <50 msec convergence time enabling faster applications response time.

- The In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.

- Full L2/L3 feature set with IPv4/IPv6 dual stack.



Simplicity and Lower TCO

- The HP 5820 Switch Series simplifies switch management by up to 75% with IRF.

- No extra hidden cost with simple one license per switch for all L2/L3 OS features.

- Simpler management using HP Intelligent Management Center (IMC) Software that delivers a single display for ease of management.

- Automate tedious tasks with Software-defined Networking (SDN) and reclaim wasted resources.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productGrey
Console portRJ-45
Depth427 mm
DHCP clientYes
DHCP serverYes
Flash memory512 MB
Form factor1U
Full duplexYes
Heat dissipation631 BTU/h
Height44 mm
IGMP snoopingYes
Internal memory2048 MB
Jumbo frames supportYes
MAC address table32000 entries
Memory typeSDRAM
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Packet buffer memory2 MB
Port mirroringYes
Power consumption (typical)300 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power supply includedNo
Quality of Service (QoS) supportYes
Rack mountingYes
Routing entries12000
StackableYes
Switch layerL3
Switch typeManaged
Switching capacity488 Gbit/s
Throughput363 Mpps
VLAN supportYes
Web-based managementYes
Weight8500 g
Width440 mm
SFP+ module slots quantity24

Hewlett Packard Enterprise 5820-24XG-SFP+

5820X-24XG-SFP+ Switch

JC102B

Out of Stock

£13,334.93
£11,112.44 Ex VAT.
