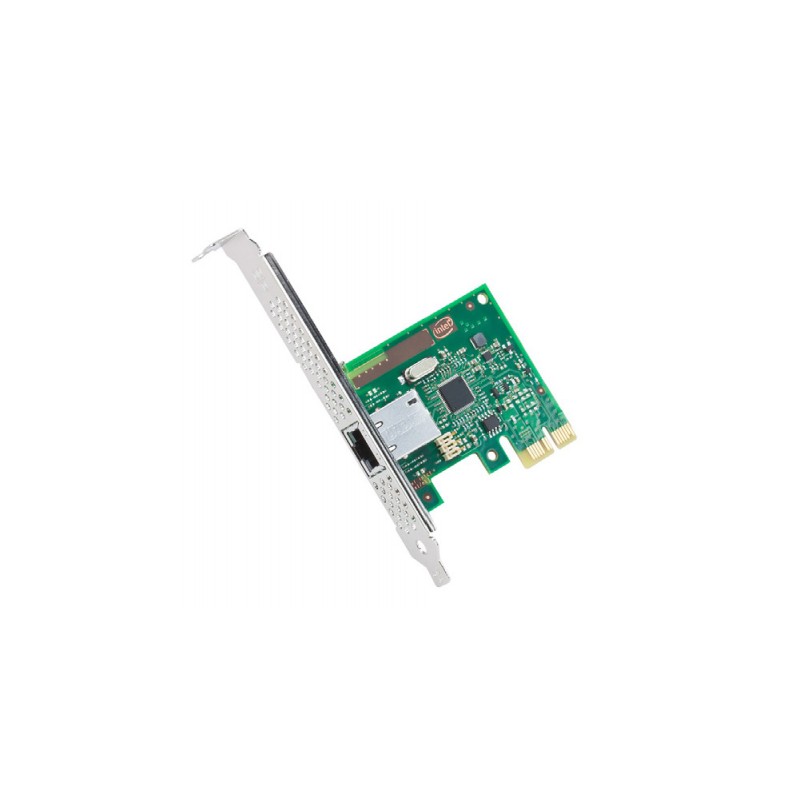

PLAN 1Gbit PCI 2.1 Intel® I210 T1
The Intel Ethernet Server adapter Intel® I210 T1 includes a Gigabit Ethernet port for entry-level servers and audio-video applications with a innovative power management. IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation.
Features
- Intel® Ethernet Controller I210 with PCI Express v2.1 Support;
- Low Halogen;
- Low profile single-port copper adapter;
- IEEE 802.3az - Energy Efficient Ethernet (EEE);
Benefits
- Industry-leading integrated MAC/PHY PCIe Gen2 GbE controller;
- Leadership in an environmentally friendly ecosystem;
- Compact design for high-density servers;
- Power consumption by the PHY is reduced by approximately 50%.
The Intel Ethernet Server adapter Intel® I210 T1 includes a Gigabit Ethernet port for entry-level servers and audio-video applications with a innovative power management. IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation.
Features
- Intel® Ethernet Controller I210 with PCI Express v2.1 Support;
- Low Halogen;
- Low profile single-port copper adapter;
- IEEE 802.3az - Energy Efficient Ethernet (EEE);
Benefits
- Industry-leading integrated MAC/PHY PCIe Gen2 GbE controller;
- Leadership in an environmentally friendly ecosystem;
- Compact design for high-density servers;
- Power consumption by the PHY is reduced by approximately 50%.
| Cabling technology | 10/100/1000BaseT(X) |
| Colour of product | Green |
| Connectivity technology | Wired |
| Data transfer rate (max) | 1000 Mbit/s |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Host interface | PCI-E |
| Interface | Ethernet |
| Internal | Y |
| Jumbo frames support | Y |
| LAN controller | Intel I210 |
| LED indicators | Y |
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u |
| Number of products included | 1 pc(s) |
| Operating temperature (T-T) | 0 - 55 °C |
| PCI version | 2.1 |
| Power consumption (typical) | 1 W |
| Storage temperature (T-T) | -40 - 70 °C |
| Supported network protocols | IPv4, IPv6 |
| Wake-on-LAN ready | Y |
