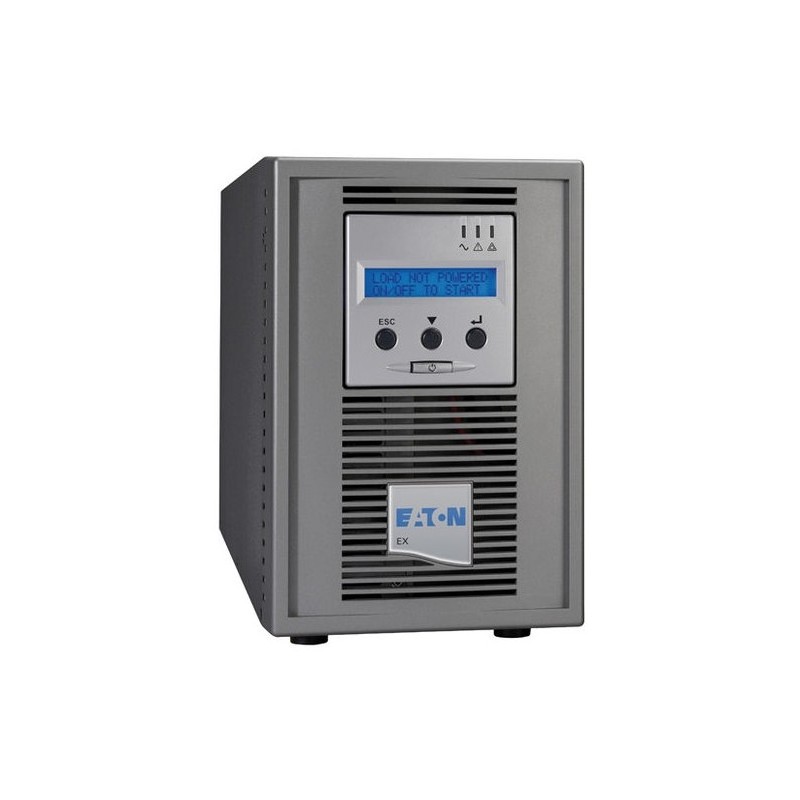

The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
| Battery technology | Sealed Lead Acid (VRLA) |
| Certification | CE, TüV GS, CB report, UL 1778 cUL CSA 22.2 |
| Colour of product | Grey |
| Communication software | Intelligent Power Manager |
| Dimensions (W x D x H) | 152.4 x 400 x 241.8 mm (6 x 15.75 x 9.52 ") |
| Dimensions (WxDxH) | 153 x 440 x 242 mm |
| Form factor | Mini Tower |
| Input connection type | C14 |
| Noise level | 45 dB |
| Nominal input voltage | 230 V |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | (6) C13 |
| Output power | 630 W |
| Output power capacity (VA) | 700 VA |
| Power supply input frequency | 50/60 Hz |
| Safety | IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 62 040-1-1, IEC/EN 60 950-1 (RD), IEC/EN 62 040-2 C1 Class |
| Serial ports quantity | 1 |
| Source data-sheet | Icecat.biz |
| Typical backup time at full load | 9 min |
| Typical backup time at half load | 31 min |
| Weight | 12500 g |
