More Info
Details

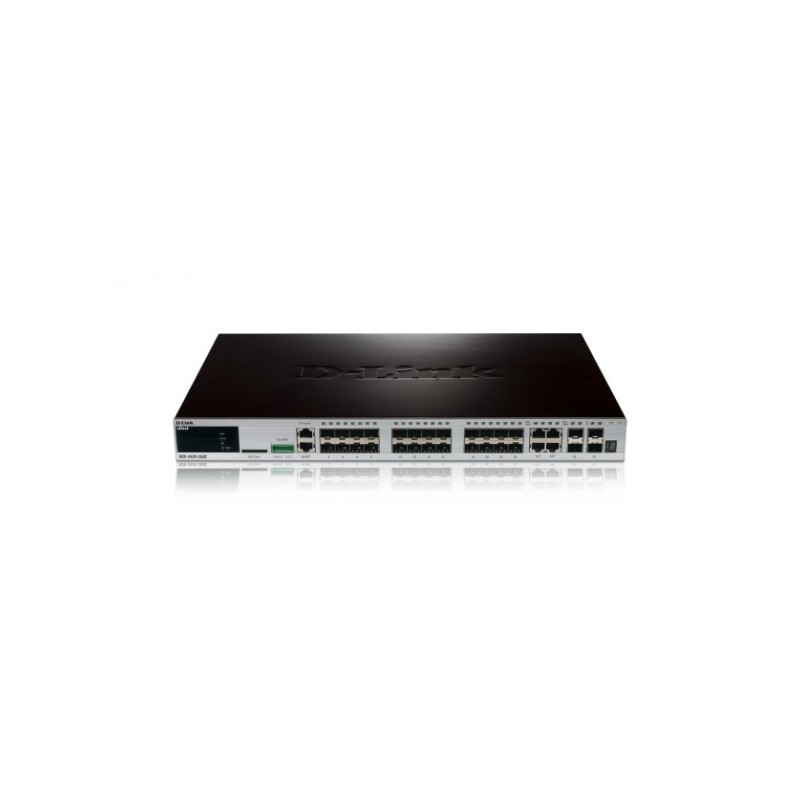

The xStack DGS-3420 series Layer 2+ Gigabit switches delivers greater value, performance, flexibility and security for SMBs and Enterprises.

The xStack DGS-3420 series of next generation Layer 2+ Gigabit switches delivers performance, flexibility, security, multi-layer QoS, and accessibility along with redundant power solutions for SMBs and enterprises.

With high Gigabit port densities, Gigabit SFP, 10-Gigabit SFP+ support and advanced software solutions, these switches can act as either departmental access layer switches or aggregation switches to form a multilevel network backbone with centralized high-speed servers.

10G support	No
10GB Ports Qty	4
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Access Control List (ACL)	Yes
Basic switching RJ-45 Ethernet ports quantity	4
Broadcast storm control	Yes
Certification	FCC Class A, CE Class A, VCCI Class A, IC, C-Tick
Colour of product	Black
Compatible memory cards	SD
Connectivity technology	Wired
Depth	310 mm
DHCP client	Yes
DHCP server	Yes
Ethernet LAN (RJ-45) ports quantity	4
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN data transfer rates	10, 100, 1000 Mbit/s
Flow control support	Yes
Full duplex	Yes
Height	44 mm
IGMP snooping	Yes
IP routing	Yes
Jumbo frames support	Yes
Link aggregation	Yes
MAC address filtering	Yes
MAC address table	16000 entries
Management	Layer 2 Managed
Maximum data transfer rate	1 Gbit/s
Mean time between failures (MTBF)	300371 h
Mounting	Rackmount
Multicast support	Yes
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3x
Noise level	46.5 dB
Operating relative humidity (H-H)	10 - 90 %
Operating relative humidity range	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Operating temperature range (T-T)	0 - 50 °C
Packet buffer memory	2 MB
Packet transfer speed	95.24Mpps
PoE	No
Port mirroring	Yes
Ports quantity	28
Power consumption (typical)	60.2 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) support	Yes
Quality of Service (QoS) support	Yes
Rack mounting	Yes
RJ45 Ports Qty	24
Safety	CB, cUL, LVD
Security algorithms	SSL/TLS
Security algorithms supported	SSL/TLS
SFP Ports Qty	4
SFP/SFP+ slots quantity	24
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
SSH/SSL support	No
Stackable	Yes
Storage relative humidity (H-H)	5 - 90 %
Storage relative humidity range	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Supported data transfer rates	10/100Mbps, 10/100/1000Mbps
Switch layer	L2
Switch Speed	Gigabit
Switch type	Managed
Switching capacity	128 Gbit/s
VLAN support	Yes
Weight	4060 g
Width	441 mm
SFP module slots quantity	24
Installed SFP modules quantity	20
SFP+ module slots quantity	4
Installed SFP+ modules quantity	20
