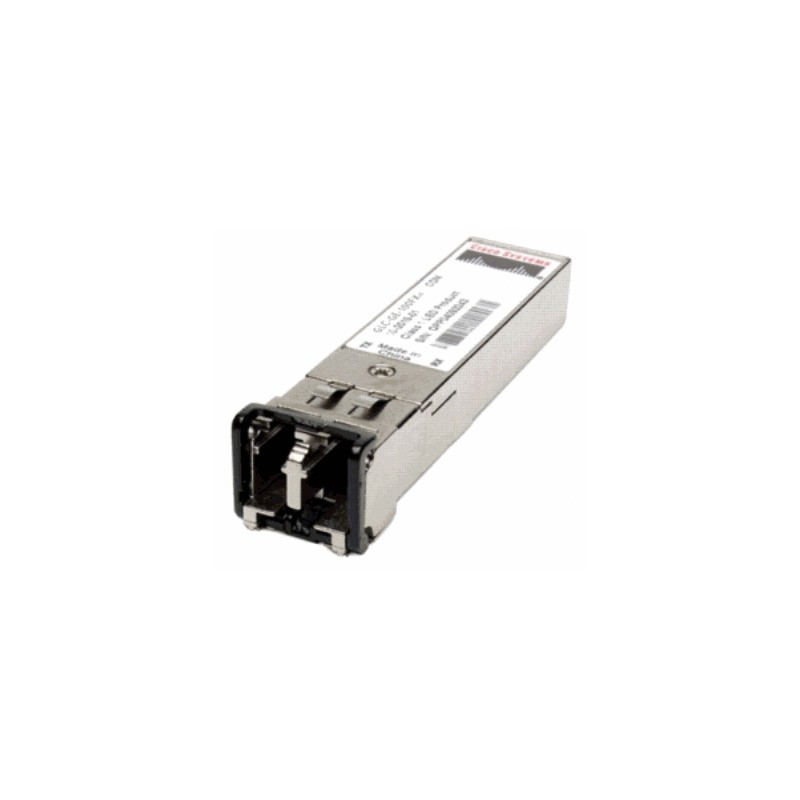

The Cisco SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BX40D-I device is always connected to a SFP-10G-BX40U-I device with a single strand of standard SMF with an operating transmission range up to 40 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BX40D-I transmits a 1330-nm channel and receives a 1270-nm signal. The SFP-10G-BX40U-I transmits at a 1270-nm wavelength and receives a 1330-nm signal.
The SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
A SFP-10G-BX40D-I device is always connected to a SFP-10G-BX40U-I device with a single strand of standard SMF with an operating transmission range up to 40 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BX40D-I transmits a 1330-nm channel and receives a 1270-nm signal. The SFP-10G-BX40U-I transmits at a 1270-nm wavelength and receives a 1330-nm signal.
The SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
| Auto MDI/MDI-X | Y |
| Cable type | fiber optic |
| Cabling technology | 10GBASE-BX40-U |
| Certification | MSA |
| Data transfer rate (max) | 10000 Mbit/s |
| Depth | 56.5 mm |
| Fiber cable diameters supported | 9/125 µm |
| Height | 8.5 mm |
| Hot-Plug support | Y |
| Hot-swap | Y |
| Interface type | SFP+ |
| Maximum transfer distance | 40000 m |
| Number of products included | 1 pc(s) |
| SFP transceiver type | BX-U |
| Wavelength | 1270 nm |
| Width | 13.4 mm |
| Tx wavelength (max) | 1330 nm |
| Single-mode fiber (SMF) supported | Y |
