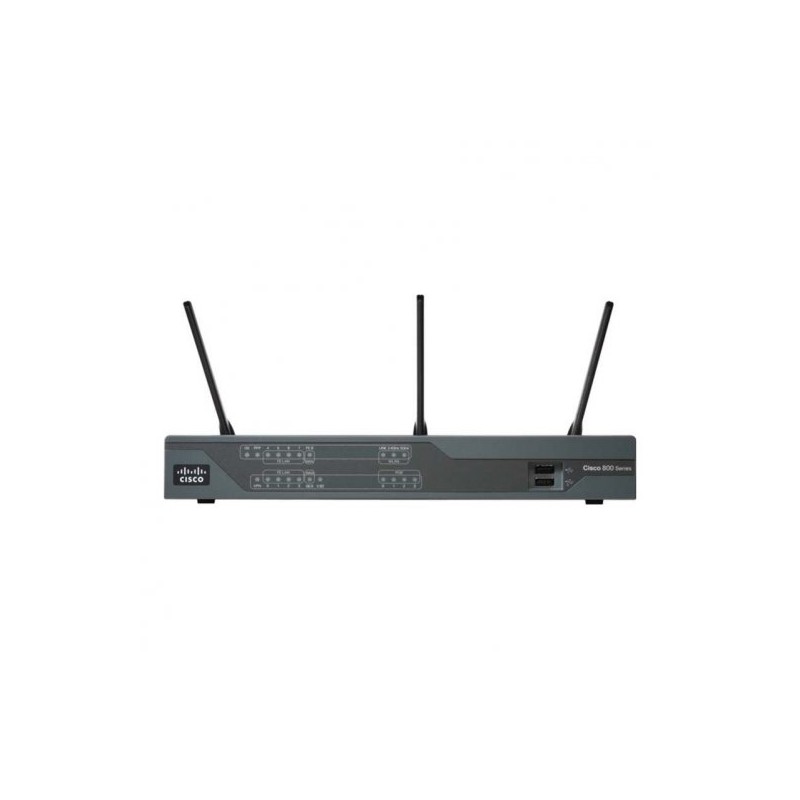

Cisco C897VA-K9
  • Cisco C897VA-K9
  • Cisco C897VA-K9
Cisco 890 Series Integrated Services Routers

Cisco® 890 Series Integrated Services Routers (ISRs) combine Internet access, comprehensive security, and wireless services in a single high-performance device that is easy to deploy and manage. They are well suited for deployment as customer premises equipment (CPE) in enterprise small branch offices and in service provider managed-service environments.



Cisco 890 Series ISRs deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks. These powerful, fixed-configuration routers provide secure broadband, Metro Ethernet, and wireless LAN (WLAN) connectivity. Service providers offering managed Ethernet WAN services can deploy them in customer locations as CPE. You get centralized and remote management capabilities through web-based tools and Cisco IOS® Software for full visibility and control of network configurations at the remote site.



The 890 routers simplify the deployment of Ethernet WAN services, with end-to-end operations, administration, and maintenance (OA&M), service-level agreement (SLA) monitoring and verification, and configuration management.



Cisco 890 Series ISRs come with an 8-port managed switch, providing LAN ports to connect multiple devices.
AC input frequency50/60 Hz
AC input voltage100-240 V
Cabling technology10/100/1000Base-T(X)
CertificationCISPR22: 2005, EN300386: V1.3.3: 2005, EN55022: 2006, EN61000-3-2: 2000, EN61000-3-3: 1995, ICES-003 Issue 4: 2004, KN 22: 2005, VCCI: V-3/2006.04, EN300386: V1.3.3: 2005, EN50082-1: 1992, EN50082-1: 1997, EN55024: 1998, EN61000-6-1: 2001
Colour of productBlack
Data networkNo
Depth248.4 mm
DHCP clientYes
DHCP serverYes
DSL connection typeADSL2+
Dual-bandNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports8
Ethernet LAN data rates10,100,1000 Mbit/s
FirewallYes
Firewall securityNAT
Flash memory256 MB
Height46.2 mm
Internal memory1024 MB
LED indicatorsYes
MAC address filteringYes
Management protocolsIGMPv3, SSH, HTTP
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af
Number of users50 user(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)60 W
Power over Ethernet (PoE) supportYes
Power source typeAC
Quality of Service (QoS) supportYes
Rack mountingYes
Routing protocolsBGP,EIGRP,HSRP,OSPF,RIP-1,RIP-2
Security algorithms128-bit AES,192-bit AES,256-bit AES,3DES,802.1x RADIUS,DES,HTTPS,SSH,SSL/TLS
SFP ports quantity1
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)0 - 65 °C
Supported network protocolsIPv4, IPv6, FTP, GRE, MGRE, L2TP, L2TPv3, DNS, PfR, MHSRP
Supports ISDN connectionYes
USB ports quantity1
USB version2.0
WAN connectionEthernet (RJ-45)
Web-based managementYes
Wi-FiNo
Width322.8 mm

C897VA-K9.pdf

Cisco C897VA-K9 Data Sheet

Download (671.14k)
