AC input frequency | 47/63 Hz |
AC input voltage | 100-240 V |
Authentication method | RSA (748/1024/2048 bit), ECDSA (256/384 bit) ; Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 |
Cabling technology | 10/100/1000Base-T(X) |
Colour of product | Black |
DC-in jack | Yes |
Depth | 507.2 mm |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 8 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Firewall | Yes |
Flash memory | 16000 MB |
Form factor | 1U |
Height | 43.9 mm |
Input current | 3 A |
Internal memory | 16384 MB |
LED indicators | Yes |
MAC address filtering | Yes |
Maximum memory card size | 32 GB |
Networking standards | IEEE 802.1Q,IEEE 802.1ag,IEEE 802.3,IEEE 802.3ah |
Non-operating altitude | 0 - 4570 m |
On/off switch | Yes |
Operating altitude | 0 - 3048 m |
Operating relative humidity (H-H) | 5 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Package depth | 730.25 mm |
Package height | 200.2 mm |
Package width | 565.1 mm |
Power consumption (typical) | 65 W |
Power source type | AC |
Power supply | 250 W |
Quality of Service (QoS) support | Yes |
Rack mounting | Yes |
Reset button | Yes |
Routing protocols | BGP,EIGRP,IS-IS,OSPF |
RS-232 ports | 2 |
Safety | UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1, GB-4943 |
Security algorithms | 128-bit AES,256-bit AES,AES,DES |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -25 - 70 °C |
Supported network protocols | IPv4, IPv6, RIP, RIPv2, IGMPv3 |
USB ports quantity | 3 |
USB version | 2.0 |
WAN connection | Ethernet (RJ-45) |
Web-based management | Yes |
Width | 438.15 mm |

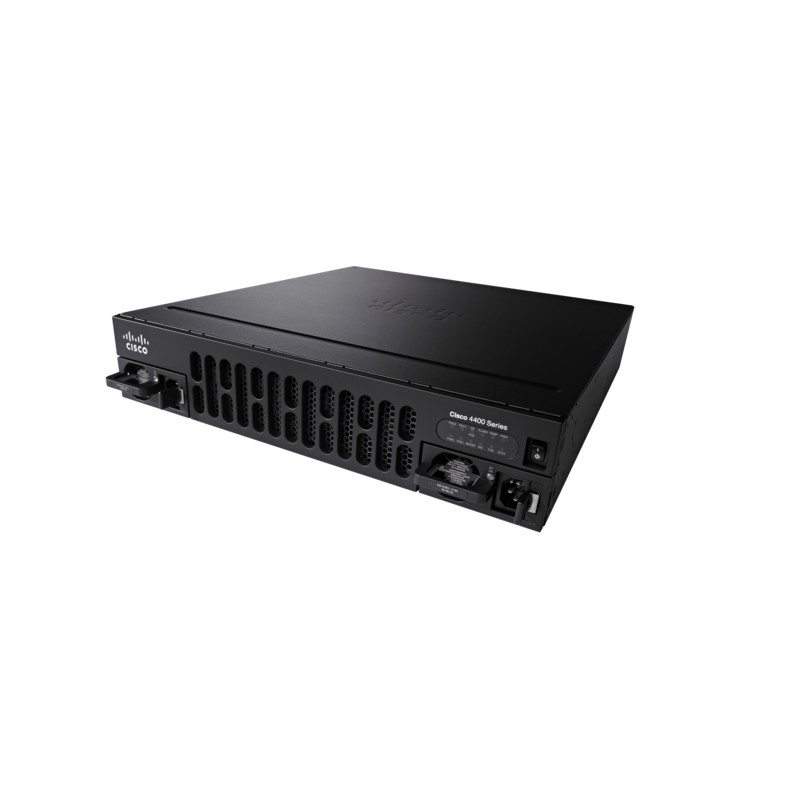

ISR 4431 AX Bundle, with IPBase, APP and SEC licenses
ISR4431-AX/K9
Stock Due 01-07-2025
