Cisco ASR 9001
  • Cisco ASR 9001
  • Cisco ASR 9001

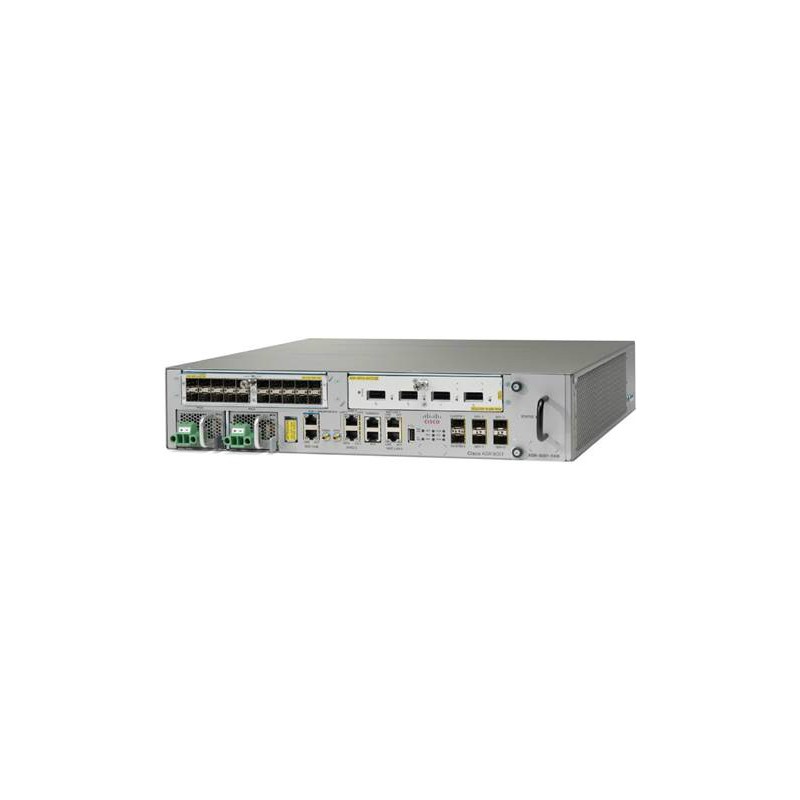

The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor.



Part of the Cisco ASR 9000 Series, the ASR 9001 is based on the same Cisco IOS XR Software image and delivers the same features and services, allowing customers to standardize on the same Cisco IOS-XR image.



The Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.
Colour of productGrey
Depth470 mm
Electromagnetic compatibilityFCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2: Power Line Harmonics, IEC/EN 61000-3-3: Voltage Fluctuations and Flicker, EN 50121-4: Railway EMC
Height88.2 mm
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)5 - 40 °C
Rack capacity2U
Rack mountingYes
SafetyUL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA: Code of Federal Regulations Laser Safety
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-5 - 55 °C
Width442 mm
