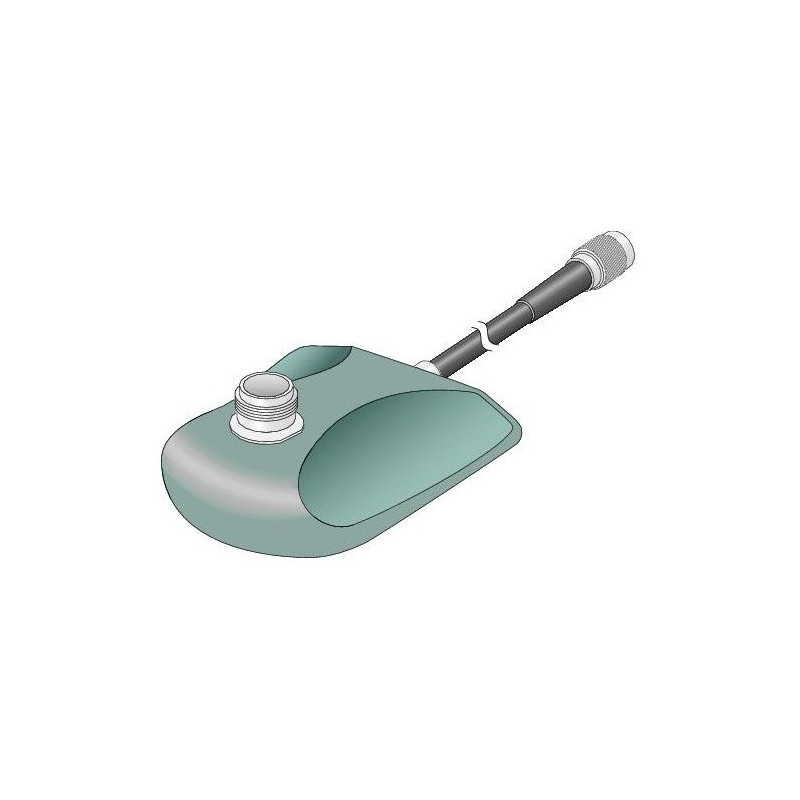

The Cisco 3G-AE015-R single-port antenna base is designed for use with portable antennas operating at frequencies up to 6 GHz that connect to 3G wireless high-speed WAN interface cards (HWICs) using a threaded Neill-Concelman (TNC) male connector. This antenna base unit, ordered separately, has 15 feet of plenum LMR-195 cable and can be used with antenna Cisco 3G-ANTM1919D.



The antenna base can be wall-mounted or placed on a rack or desktop, and has the following features:

-Multiple band coverage supporting cellular backahaul installations and wireless LAN (WLAN) and wi-fi networks.

-Ergonomic design.
