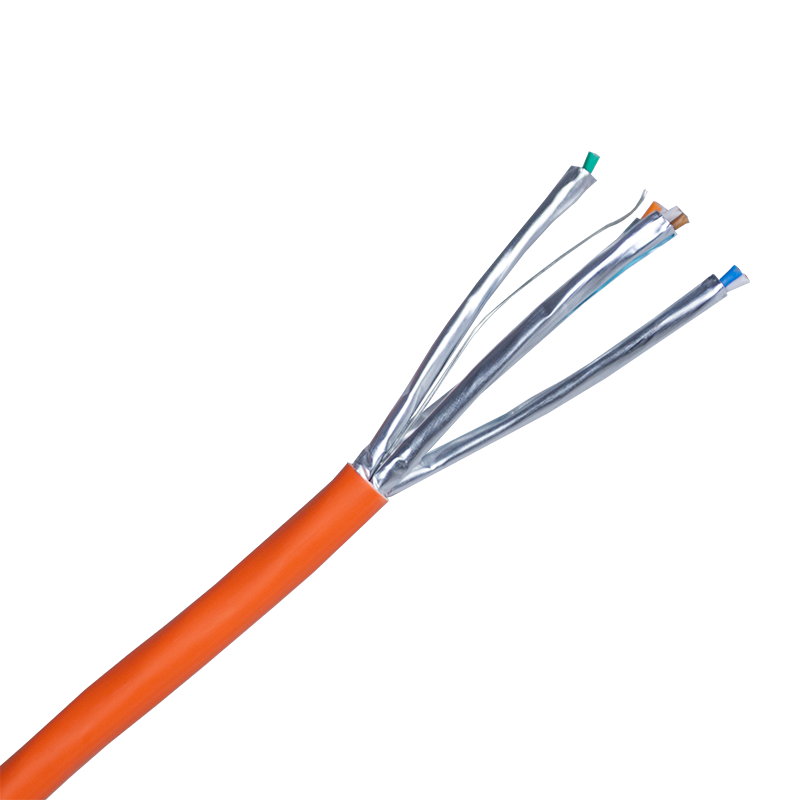

Cat6a U/FTP LSZH B2ca Solid Cable
  • Cat6a U/FTP LSZH B2ca Solid Cable
  • Cat6a U/FTP LSZH B2ca Solid Cable
  • Cat6a U/FTP LSZH B2ca Solid Cable Box

Connectix Category 6a U/FTP Cable has been designed to provide the exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.

The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.

The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien crosstalk. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.

Features & Benefits:

  • B2Ca Fire Rated Orange Cable
  • U/FTP shielding
  • Available from Stock
  • Suitable for Gigabit Ethernet applications
  • Supplied metre marked for easy installation
  • Pure copper cores
  • Excellent performance exceeding ANSI/TIA Category 6A specifications
  • In line with BS6701:2016+A1:2017 specifications
  • 25 Year System Warranty
  • Available in 100m and 305m boxes
Operating temperature (T-T)-20°C up to +60 °C
Conforms toIEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire RatingB2ca,s1a,d1,a1
InsulationSkin-foam-skin Polyethylene, Ø 1.33 mm
Min. Bending Radius Installation60mm
Min. Bending Radius Installed30mm
Installation temperature (T-T)0˚C to +50˚C
ConductorBare copper wire (AWG 23)
Drain Wireyes
Shield Around Each PairAl/Mylar
SheathFR-LSZH
Outer Diameter7.4mm
Max. Pulling Tension78n
