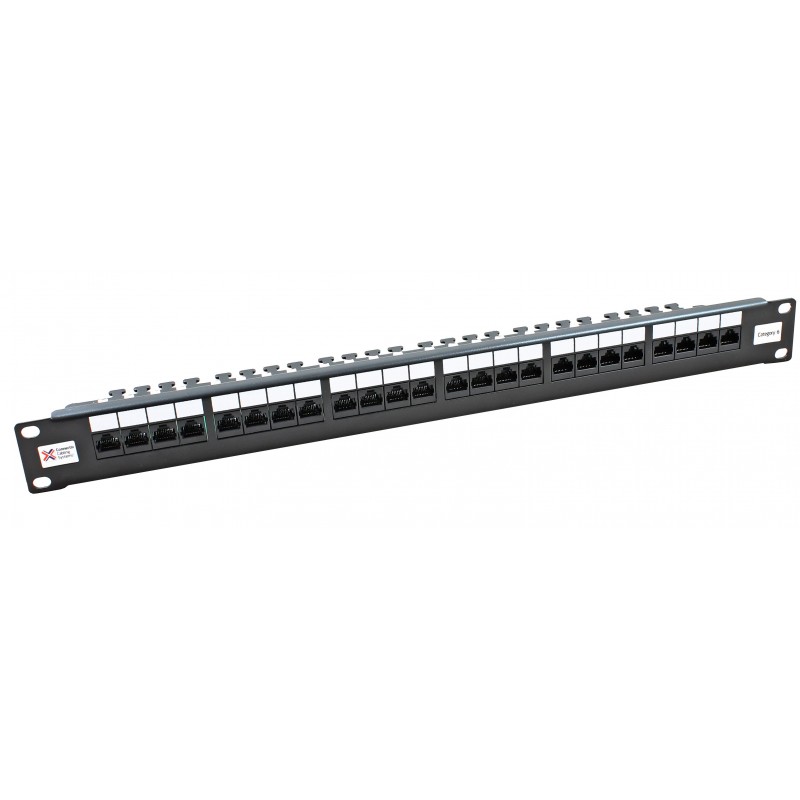

The Connectix 2020 Series Patch Panel is an alternative to the Category 6 High Density Panel. It offers the same Category 6 performance as the standard panel but has been designed to present the cable termination IDCs horizontally on a tray at the rear , making termination and
cable management easier.

Category 6 High Density 24 way panels achieve optimum transmission performances by incorporating the highest quality components and innovative on-board compensation techniques.

This panels offer extended PowerSum characteristics and exceeds the ANSI/TIA-568-C specifications. When combined with Connectix Category 6 Modules and UTP Cable the link will perform well in excess of the Category 6 specification.

LC, SC, ST and FC fibre modules are also available, complete with a Starlight compatible gland hole and integrated management tray. Blank modules can be included for future expansion.

Details:

Features:

• Easy to install
• Simple cable management
• Suitable for Gigabit Ethernet applications
• Adjustable recessed mounting version available
• Mix and match copper and fibre in one panel

Specifications:

• Width - 483mm (19”)
• Depth - 95mm
• Height - 1u (44mm)
• Fixing Centres - 467mm
• Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01
• Finish - Matt black polyester paint
• Socket Labels - Write-on silk screen on panel front
• Cable Management - Improved cabling facility with easy to use cable tie positions for left and right cable entry
• IDC Labelling - Colour coded to T568B
• IDC Blocks - Industry standard 4 way IDCs
• Conforms to - ANSI/TIA-568-C Category 6 Specification
