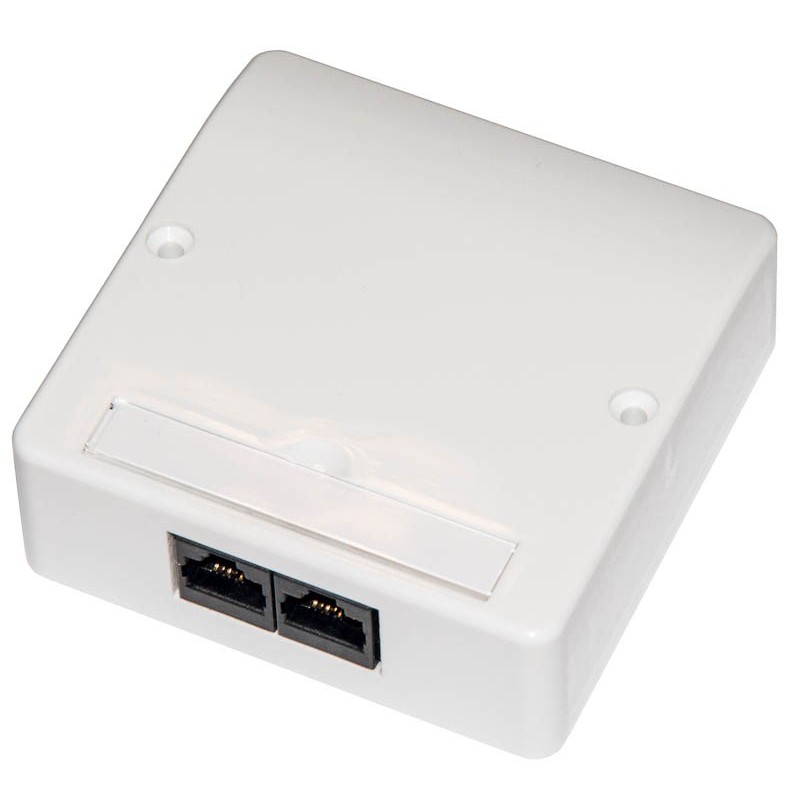

The Connectix 4000 Series offers Category 6 performance in a high-density package.
The 4000 Series is extremely quick and easy to install; just attach the base plate, snap in the PCB, punch down the cables and install the cover. Gone are the problems of installing modules into a faceplate and pushing excess wires into a back box.
The 4000 Series outlets have been designed for direct wall mounting with top entry mini trunking. In addition, they fit on a standard back box to provide maximum mounting flexibility.
The position of the sockets on the vertical outlet allows for a compact installation without protruding leads.
Features:
- High density, single gang unit
- Category 6 performance
- No protruding leads
- Designed for direct wall mounting
- Custom logo service available
- Available in a 2 or 4 port version
Specifications:
- Width - 87mm
- Depth - 27mm
- Height - 87mm
- Material - ABS thermoplastic resin, with grade UL94 VO at 1.5mm flame retardancy
- Finish - High gloss
- IDC Blocks - Industry standard IDC blocks
- PCB - 1.6mm double sided PTH boards
- Conforms to - TIA/EIA-568-C Category 6 Specification
| Depth | 27mm |
| Height | 87mm |
| Shielded | No |
| Specification | Cat6 |
| Termination | Krone Style IDC PunchDown |
| Width | 87mm |
Michael C - 11/03/2024
Discreet and worked well with my use case.
Richard Stuart G - 24/11/2023
Really neat and tidy solution, had to ask a connection question but Cable Monkey came back very quickly with a reply
Lindsay M - 17/03/2022
More expensive but quick to install and neat. A well thought out product.
R C - 13/02/2022
Excellent way of keeping cables today in a small space.
Micael P - 10/03/2021
Clean, effective. Comes with spare screws as well.Knocking down to 4 stars as the first one I received was faulty.
Robert M - 19/02/2021
Good clean unit that looks smart and does not need a back box. Excellent!
dave w - 31/12/2020
Perfect for fitting under a shallow false floor as outlets are side fed
