The Connectix Category 6 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.

The attractive high gloss finish and easy to use labelling system is identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.

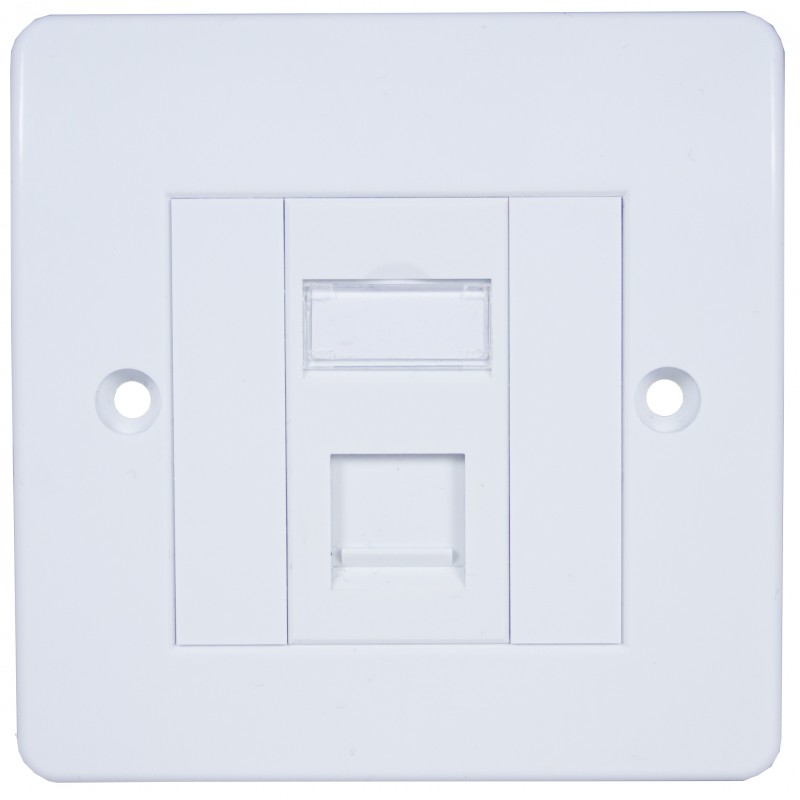

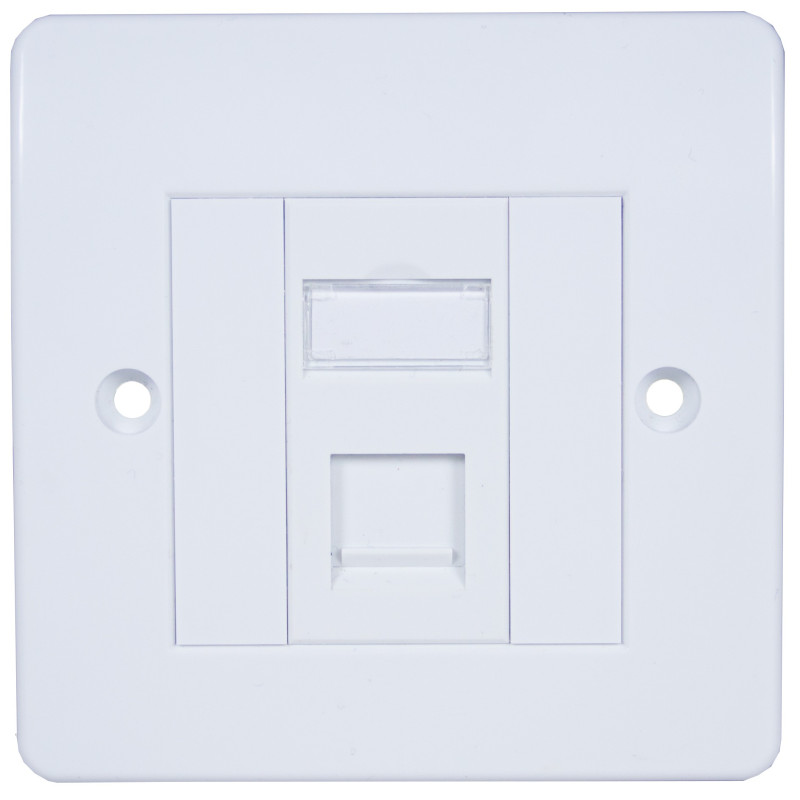

Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

Connectix Category 6 Modules are fully compliant with the ANSI/TIA Category 6 Standard. When used in conjunction with Connectix Category 6 Patch Panels and FTP Cable the user will get a link performance exceeding the Category 6 requirements.

Features:

• Suitable for Gigabit Ethernet applications
• Shallow design requires minimal back-box depth
• Interchangeable with all other Euro modules and quarter blanks
• Fits all standard Euro faceplates
• Individually QA tested

Specification:

• Width - 25mm
• Depth - 21mm
• Height - 50mm
• Back-box Depth - Minimum 15mm recommended
• Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardency
• Finish - High gloss
• IDC Labels - Individual colour coded to T568B
• IDC Blocks - 4 way industry standard IDC blocks
• Conforms to - ANSI/TIA-568-C Category 6 Specification
