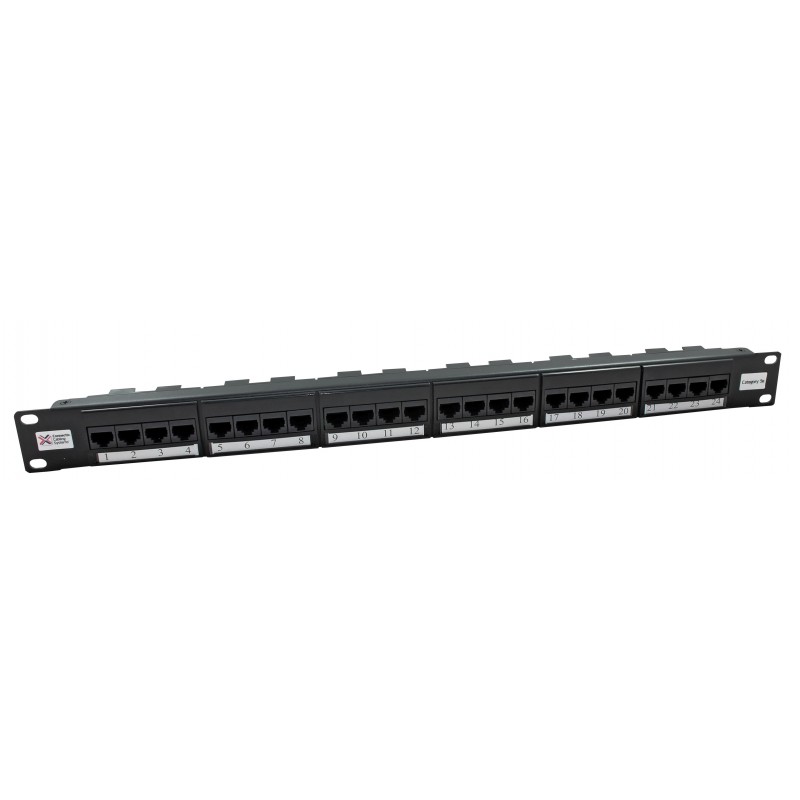

24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment
  • 24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment
  • 24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment
  • 24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment
  • 24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment
  • 24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment

Connectix Enhanced Category 5 High Density Elite Patch Panels provide exceptional performance for high speed LANs including Gigabit Ethernet applications. The High Density format is ideal where cabinet space is at a premium.

The panels achieve optimum transmission performances by incorporating the highest quality components and innovative on-board compensation techniques. The front of the panel features easy to use slide in labels and the rear utilities colour coded cable saddles and hook and loop cable retainers.

All Connectix Enhanced Category 5 Panels offer extended PowerSum characteristics and exceed the ANSI/TIA-568-C specifications, and when combined with Connectix Enhanced Category 5 Modules and UTP Cable, the link will perform well in excess of the Enhanced Category 5 Specification.

Features:

  • Suitable for Gigabit Ethernet applications
  • Individual colour coded saddles allow quick and accurate terminations
  • Top quality sockets
  • Fully QA tested
  • Optional cable management tray
Depth30mm
Height1u (44mm)
ShieldedNo
SpecificationCat5e
TerminationKrone Style IDC PunchDown
Width483mm (19”)
Number of Ports24 Port
