Canon VB-S30VE
  • Canon VB-S30VE
  • Canon VB-S30VE
  • Canon VB-S30VE
  • Canon VB-S30VE
  • Canon VB-S30VE
  • Canon VB-S30VE

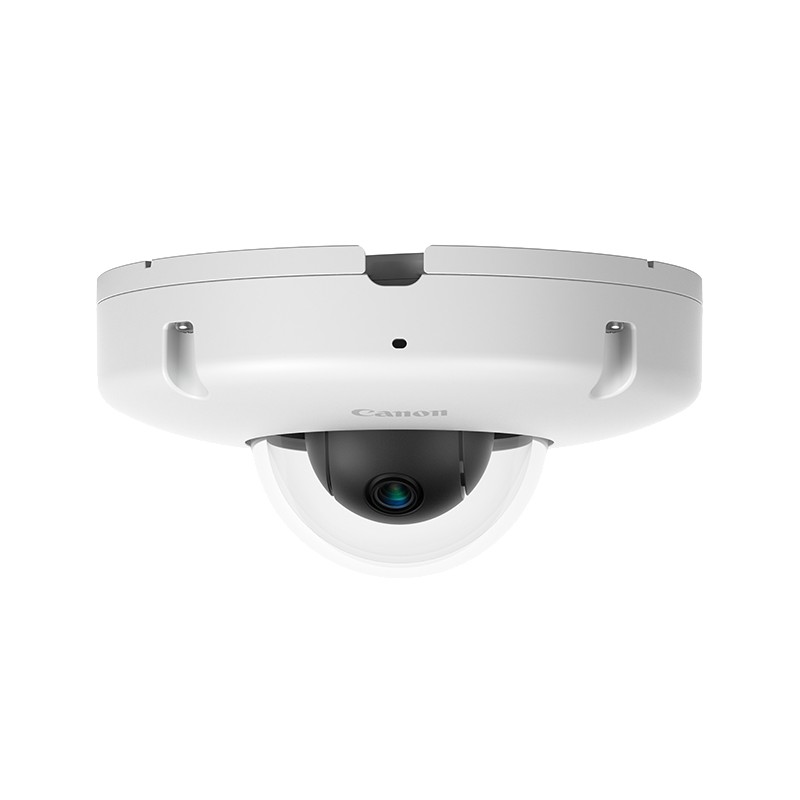

Canon's compact and powerful VB-S30VE Vandal Resistant Outdoor PTZ Micro Dome Network Camera delivers Full HD (1920 x 1080) video with outstanding clarity and color accuracy in challenging outdoor environments. This 2.1 Megapixel resolution camera's Genuine Canon Lens is equipped with motorized Pan/Tilt mechanisms and, despite its small form factor, additionally boasts a 3.5x optical zoom. This models IP66 and IK10 ratings substantiate its ability to withstand harsh weather and vandalism. The lightweight and easy-to-install VB-S30VE uses a minimal amount of power (max 8.1W over PoE) and helps reduce bandwidth and storage space usage due to its Motion Adaptive Noise Reduction and Area- Specific Data Size Reduction features. A built-in microphone also allows audio recording at the installation site.*



- 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail

- Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility

- Motorized Pan/Tilt/Zoom for Remote Camera Positioning

- Compact Form Factor allows Camera to be Discreet and Aesthetically Pleasing

- IP66 Rated for Water and Dust Resistance

- IK10 Rated for Impact Resistance

- Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy

- Built-in Microphone for Audio Recording at Installation Site*

- 64 Preset Positions for One-Click Camera Positioning

- Moisture Release System to help Prevent Video Distortion due to Excess Moisture

- Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption

- Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage

- Privacy Mask for Placing a Digital Mask over Restricted Areas

- ONVIF Profile S Conformant for VMS Connectivity

- Web-Based Camera Viewer with Mobile Device Support

- PoE Power Source Compatible
Active tampering alarmYes
Alarm input/outputYes
Audio system2-way
Built-in hard driveNo
Built-in microphoneYes
Cabling technology10/100Base-T(X)
Camera shutter speed1 - 1/16000 s
Card reader integratedYes
Colour of productWhite
Compatible memory cardsMicroSD (TransFlash),MicroSDHC,MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter132 mm
Digital zoom4 x
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range (f-f)2.25 - 7.88 mm
FocusManual
Form factordome
Frame rate30 fps
Full HDYes
Headphone outputs1
Height65 mm
HTTPS encryptionYes
International Protection (IP) codeIP66
IP address filteringYes
Languages supportCHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,RUS,THA,TUR
Light exposure modesAuto,Manual,Shutter priority AE
Maximum resolution1920 x 1080 pixels
Megapixel2.1 MP
Minimum illumination0.5 lx
Minimum processorIntel Core i7-2600
Minimum RAM2048 MB
Mobile operating systems supportedAndroid,iOS
Mounting typeCeiling
Night visionNo
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)-25 - 50 °C
Optical sensor size1/4.85 "
Optical zoom3.5 x
Pan range-175 - 175 °
Pan speed120 °/sec
Password protection typeUser
Placement supportedUniversal
Power over Ethernet (PoE)Yes
Progressive scanYes
Protection featuresDust resistant,Vandal-proof,Water resistant
PTZ control (Pan/Tilt/Zoom)Yes
Sensor typeCMOS
Supported graphics resolutions320 x 180,320 x 240,480 x 270,640 x 360,640 x 480 (VGA),960 x 540,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Tilt angle0 - 90 °
Tilt speed120 °/sec
TypeIP security camera
Video compression formatsH.264,M-JPEG
Video motion detectionYes
Viewing angle, horizontal77.1 °
Viewing angle, vertical40.2 °
Voice codecsG.711
Weight620 g
White balanceAuto,Daylight,Fluorescent,Halogen,Manual,Mercury lamp,Sodium lamp
Wi-FiNo
Windows operating systems supportedYes
Zoom capabilityYes
Auto focusYes
Power consumption (Power over Ethernet (PoE))8.1 W
Preset pointsYes
Maximum aperture number1.4
Number of cameras1
Alert notification typeE-mail
Image stabilizerYes
PTZ modesPreset point
Minimum aperture number2.6
IK codeIK10
Gain control typeAuto
Bit rate64 - 16384 kbps
Preset programs quantity64
Fixed focusYes

1387C001.pdf

Canon VB-S30VE Data Sheet

Download (9.89M)

Similar products

  • Canon VB-M50B
    Canon VB-M50B
  • Canon VB-S910F
    Canon VB-S910F

Canon VB-S30VE

1/4.85" CMOS (RGB), 2.1 MP, 350°, 1 x RJ-45, MicroSD, PoE, IP66, IK10, Ø132 x 65 mm

1387C001

Out of Stock

£709.86
£591.55 Ex VAT.
