AXIS T8504-E Outdoor PoE Switch gives you a quick, easy way to deploy outdoor cameras over long distances and keep your installation costs low. With an integrated SFP port, it’s perfect for fiber-based installation. It’s also a robust, low-upkeep solution – but if and when maintenance work is needed, remote management makes taking care of it a simple matter.
For long distance connections
AXIS T8504-E is specifically designed for fiber-optic connections, which are typically used in city surveillance, airports and other long distance installations. Made for the surveillance industry AXIS T8504-E is a perfect complement to both Axis solutions and third party products.
Easy to install and configure
Just like all Axis product, AXIS T8504-E is easy to install using standard Axis tools like AXIS Camera Management and AXIS IP utility. AXIS IP Utility even automatically discover and displays Axis devices on the network and helps you set the IP address of Axis network video products.
- Plug-and-play installation
- SFP port – for fiber installation
- Power over Ethernet (PoE)
- Up to 60 W per port (total 150 W)
- IP67 rating
For long distance connections
AXIS T8504-E is specifically designed for fiber-optic connections, which are typically used in city surveillance, airports and other long distance installations. Made for the surveillance industry AXIS T8504-E is a perfect complement to both Axis solutions and third party products.
Easy to install and configure
Just like all Axis product, AXIS T8504-E is easy to install using standard Axis tools like AXIS Camera Management and AXIS IP utility. AXIS IP Utility even automatically discover and displays Axis devices on the network and helps you set the IP address of Axis network video products.
- Plug-and-play installation
- SFP port – for fiber installation
- Power over Ethernet (PoE)
- Up to 60 W per port (total 150 W)
- IP67 rating
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | IEC 60529 IP67, NEMA 250 4X, GR-1089-CORE 4 ITU-T K.20 |
| Colour of product | White |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 166 mm |
| Electromagnetic compatibility | EN 55032 B, EN 55024, FCC 15 B B, RCM AS/NZS CISPR 32 B, EN 61000-4-5 5, EN 50121-4, IEC 62236-4 |
| Height | 72 mm |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| Jumbo frames support | Y |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.1Q,IEEE 802.3af,IEEE 802.3at |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | -40 - 50 °C |
| Password protection | Y |
| Plug and Play | Y |
| Power over Ethernet (PoE) | Yes |
| Safety | IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EAC |
| Security algorithms | HTTPS,SNMP,SNMPv3,SSH |
| Storage relative humidity (H-H) | 0 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, Bonjour, SNMP v1/v2c/v3, DNS, TCP, UDP, IGMP, ICMP, ARP, SSH, RADIUS, TACACS, TELNET, Syslog, 802.1Q (VLAN) |
| Surge protection | Y |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.9 Mpps |
| Total Power over Ethernet (PoE) budget | 150 W |
| User guide | Y |
| VLAN support | Y |
| Weight | 2900 g |
| Width | 240 mm |
| Jumbo frames | 9216 |
| SFP module slots quantity | 1 |
| Power over Ethernet (PoE) power per port | 60 W |
| Power connector | DC-in jack |
| Surge protection voltage | 6 kV |

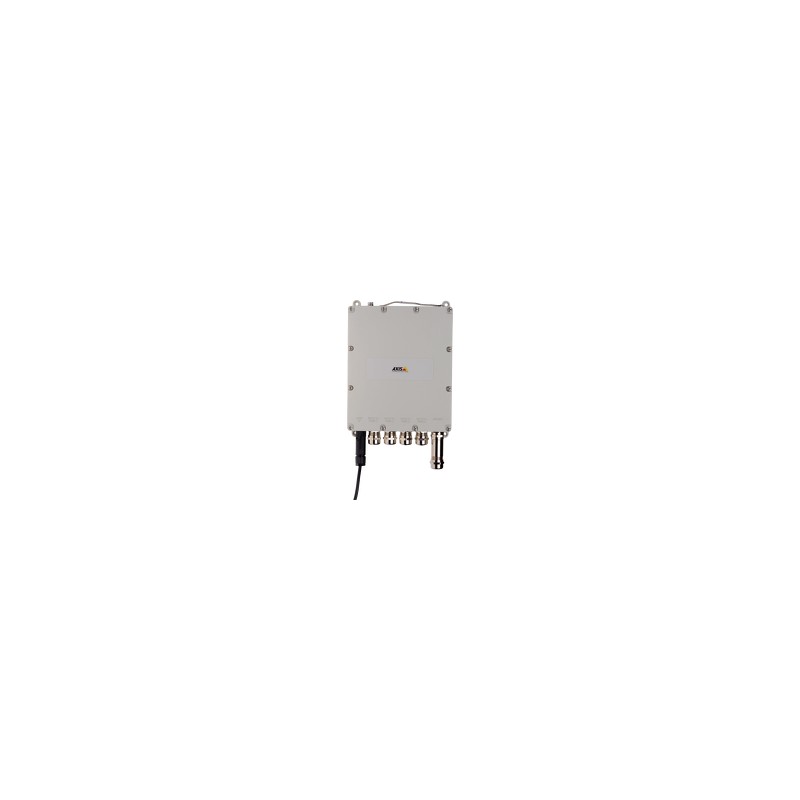

Axis T8504-E
14.9 Mpps, 20 Gbps, 4x RJ-45 10Base-T/100Base-TX/1000Base-T, SFP, PoE+, 240x166x72 mm
01449-001
Out of Stock
£1,293.12
£1,077.60 Ex VAT.
