Features

- Allows up to eight HDMI sources to be connected to one HDMI display;

- Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control;

- Built-in bi-directional RS-232 serial port for high-end system control;

- Supports Dolby True HD and DTS HD Master Audio;

- Up to 60 Hz refresh rate;

- Long-distance transmission - up to 20 m (24 AWG) and 15 m (28 AWG);

- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200);

- Supports 12-bit Deep Color for HDMI formats;

- Plug-and-play - no software installation required;

- DDC compatible;

- HDMI 1.3b compliant;

- HDCP 1.1 compliant;

- HDMI CEC compliant;

- Signaling rates up to 2.25 Gbits in support of 1080p display;

- All-metal casing;

- Power On Detection - if one of the HDMI source devices is powered off, the VS0801H will automatically switch to the next powered on device;

- Easy and affordable way to add eight HDMI inputs to your home theater system;

- Rack Mountable.



Package Contents

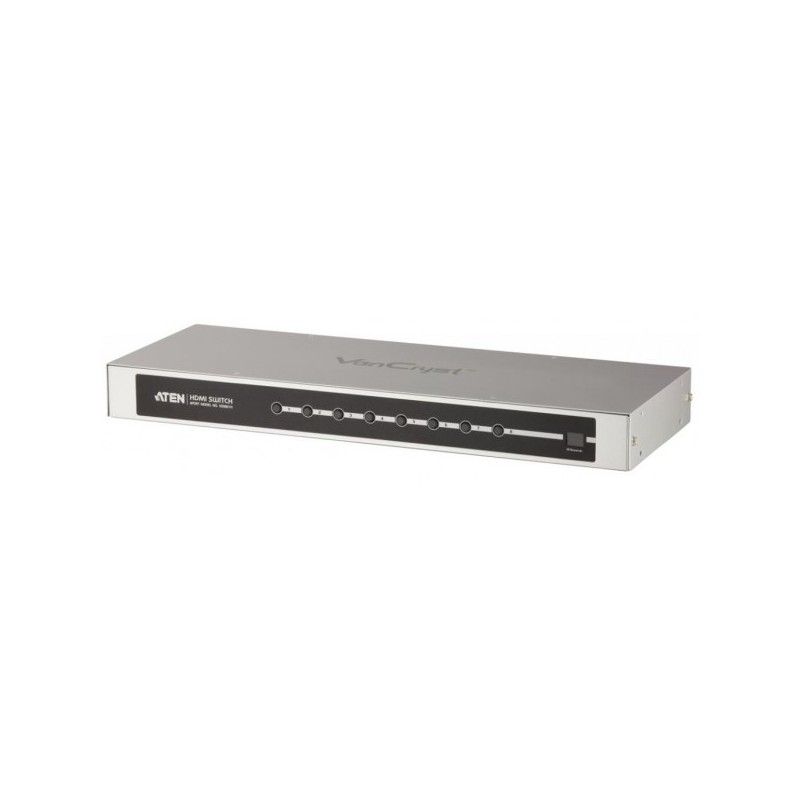

- 1x VS0801H 8-Port HDMI Switch

- 1x IR Remote Control Unit

- 1x 0AD6-1605-24EG Power Adapter

- 1x Rack Mount Kit

- 1x User Instructions
