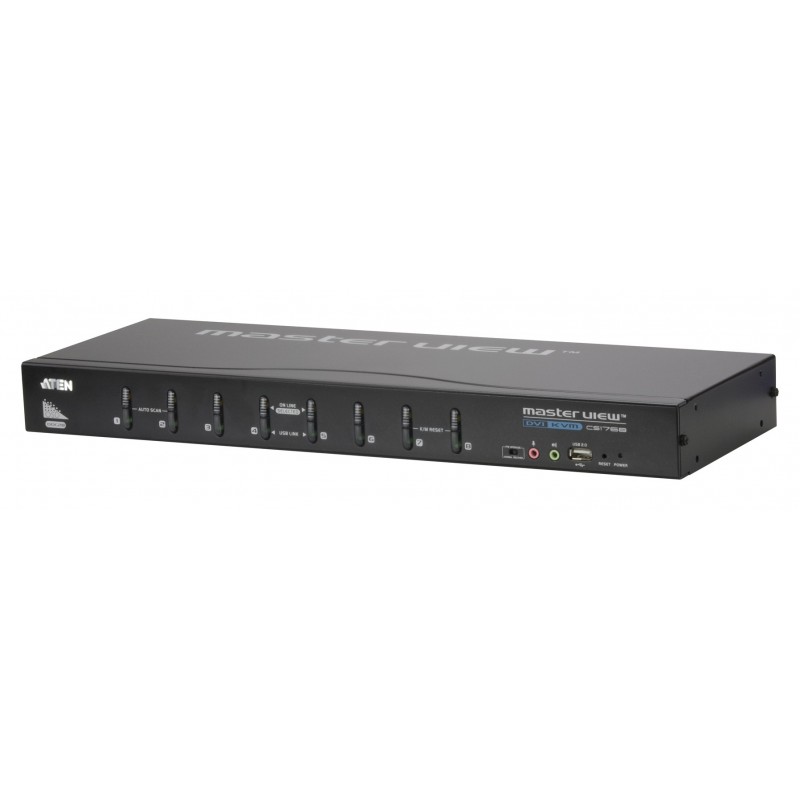

Aten CS1768 8-Port USB DVI KVM Switch
  • Aten CS1768 8-Port USB DVI KVM Switch
  • Aten CS1768 8-Port USB DVI KVM Switch
  • Aten CS1768 8-Port USB DVI KVM Switch
Features



- One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices

- Supports both digital (DVI) and analog (VGA) video – mixed operation Possible

- Cascadable to three levels – control up to 512 computers

- Multiview mode – stack up to four CS1768 units and display video from up to four monitors (dual view / triple view / quad view)

- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)

- OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information

- 2-port USB 2.0 hub built in

- Fully compliant with the USB 2.0 specification

- Two-level (Administrator/User) password authorization for enhanced security protection

- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French

- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems

- Console audio ports on front panel for easy access

- Multiplatform support – Windows, Linux, Mac, Sun

- Supports widescreen resolutions

- Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B

- Independent switching of KVM and USB focus

- DVI digital and analog monitor support – fully compliant with the DVI specifications

- HDCP compatible

- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Chinese, and Spanish

- Complete keyboard emulation for error-free booting

- Mac/Sun keyboard support and emulation*

- Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional

- Auto Scan Mode for monitoring all computers

- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.

- Firmware upgradable



Note: PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers



Package Contents



- 1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit

- 2x 2L-7D02U USB DVI-D KVM Cable Sets

- 1x Firmware Upgrade Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x Foot Pad Set (4 pcs)

- 1x User Instructions
AC adapter includedYes
AC input voltage5.3 V
Cables includedKVM
CertificationTW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217 RoHS
Colour of productBlue
Compatible operating systemsWindows, Linux, Mac, Sun
Connectivity technologyWired
Depth437.2 mm
DVI-I ports quantity8
Headphone outputs8
Height44 mm
Keyboard port typeUSB
LED indicatorsYes
ManualYes
MaterialMetal
Maximum analog resolution2048 x 1536 pixels
Maximum digital resolution1920 x 1200 pixels
Maximum resolution2048 x 1536 pixels
Mouse port typeUSB
Number of computers controlled8
Number of microphone inputs8
Operating relative humidity (H-H)0 - 80 %
Operating relative humidity range0 - 80 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Ports quantity8
Power consumption (typical)3.76 W
Quick installation guideYes
RoHS complianceYes
Scan interval255 s
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
USB 2.0 ports quantity10
VGA (D-Sub) ports quantity1
Video port typeDVI-I
Weight2800 g
Width161.1 mm
