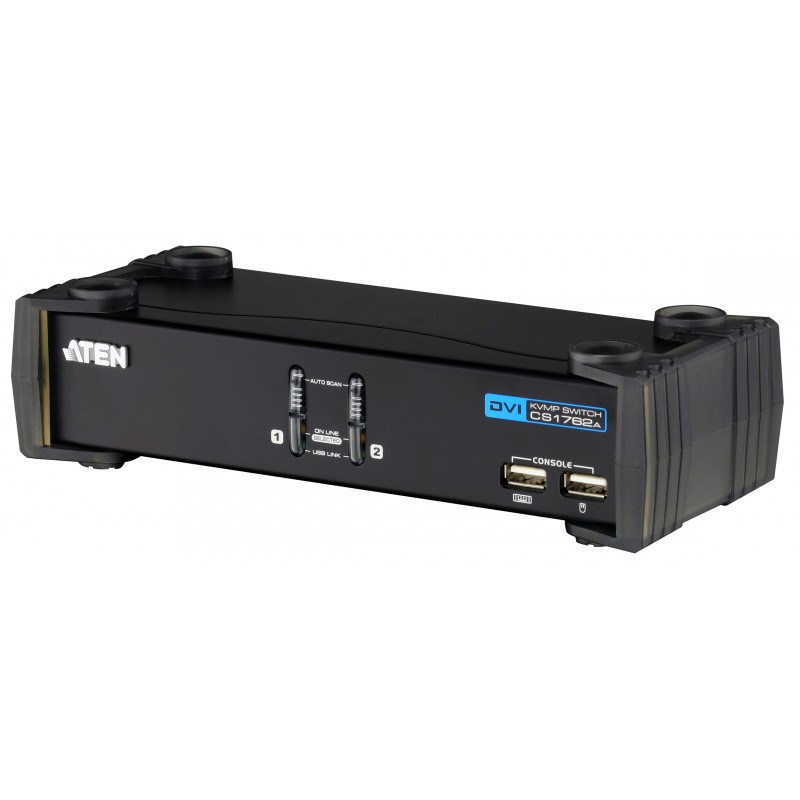

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Package Contents

1x CS1762A USB 2.0 DVI KVMP™ Switch
2x Custom KVM Cable Sets (DVI-D)
1x Power Adapter
1x User Instructions

Features:

• One USB console controls two DVI computers and two additional USB 2.0 devices
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
• Multiplatform support – Windows, Linux, Mac, and Sun
• Supports widescreen resolutions
• Superior video quality – 1920 x 1200
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with the DVI specifi cations
• HDCP compatible
• Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
• Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Auto Scan Mode for monitoring all computers
• Firmware upgradable

* 1. PC keyboard combinations emulate Mac/Sun keyboards
 2. Mac/Sun keyboards only work with their own computer
