Features

- Local and Remote Units connect at distances up to 150 m using Cat 5e cable

- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance

- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles

- Built-in ASIC for greater reliability and compatibility

- Auto Signal Compensation (ASC) and storage of settings

- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)

- Audio Enabled - supports stereo speakers and microphone

- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

- Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)

- Superior Audio - no loss in audio quality at 150 m

- Supports Wide Screen formats

- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

- Hot pluggable

- Rack mountable

- Easy to install - no software required - connecting cables to the devices is all it takes



Package Contents

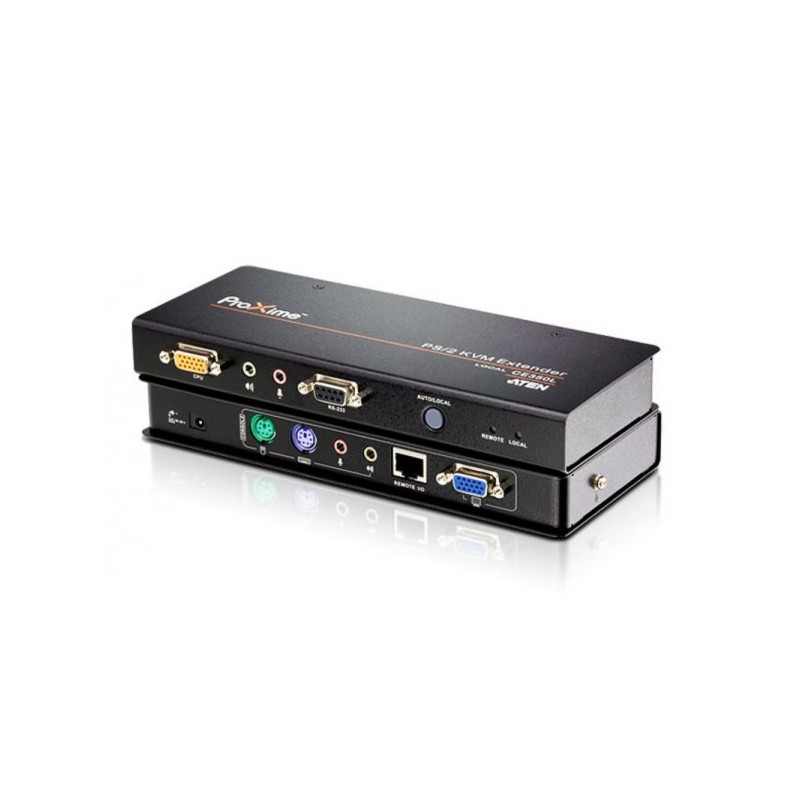

- 1x CE350L PS/2 KVM Extender (Local Unit)

- 1x CE350R PS/2 KVM Extender (Remote Unit)

- 1x 2L-5302P PS/2 KVM Cable Set (1.8 m)

- 2x 0AD6-1605-24EG Power Adapters

- 1x Mounting Kit

- 1x User Instructions
