ATX Power connector (24-pin) | Y |
Audio output channels | 7.1 channels |
Compatible processor series | Intel Xeon |
Component for | PC |
CPU fan connector | Y |
Depth | 330 mm |
EPS power connector (8-pin) | Y |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 2 |
Front panel audio connector | Y |
Graphics adapter | AST2500 |
LAN controller | Intel I210AT |
Maximum internal memory | 768 GB |
Memory slots type | DIMM |
Motherboard chipset | Intel C621 |
Motherboard chipset family | Intel |
Motherboard form factor | EEB |
Number of chassis fan connectors | 7 |
Number of COM connectors | 1 |
Number of memory slots | 12 |
Number of SATA III connectors | 6 |
Parallel processing technology support | 4-Way CrossFireX,4-Way SLI |
PCI Express x16 (Gen 3.x) slots | 7 |
Power source type | ATX |
Processor manufacturer | Intel |
Processor socket | Socket P |
PS/2 ports quantity | 1 |
RAID levels | 0,1,5,10 |
S/PDIF out port | Y |
Supported memory clock speeds | 2400,2666 MHz |
Supported memory types | DDR4-SDRAM |
Supported RDIMM clock speeds | 2400,2666 MHz |
Supported storage drive interfaces | M.2,Serial ATA III |
USB 2.0 connectors | 1 |
USB 2.0 ports quantity | 4 |
Width | 305 mm |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.0 (3.1 Gen 1) connectors | 2 |
USB 3.1 (3.1 Gen 2) Type-A ports quantity | 2 |
Audio chip | Realtek S1220A |
VGA connectors | 1 |
Number of M.2 (E) slots | 1 |

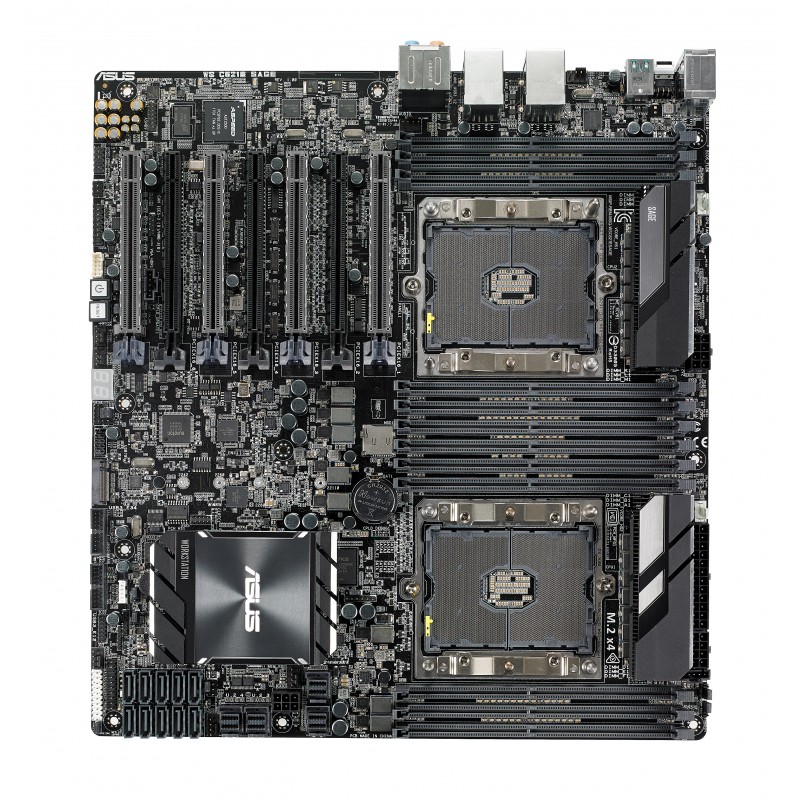

Intel C621, 12 x DIMM, Max. 768GB, DDR4, EEB, SLI, CrossFireX, SATA III
90SW0020-M0EAY0
Out of Stock
