APC Smart-UPS VT
  • APC Smart-UPS VT
  • APC Smart-UPS VT

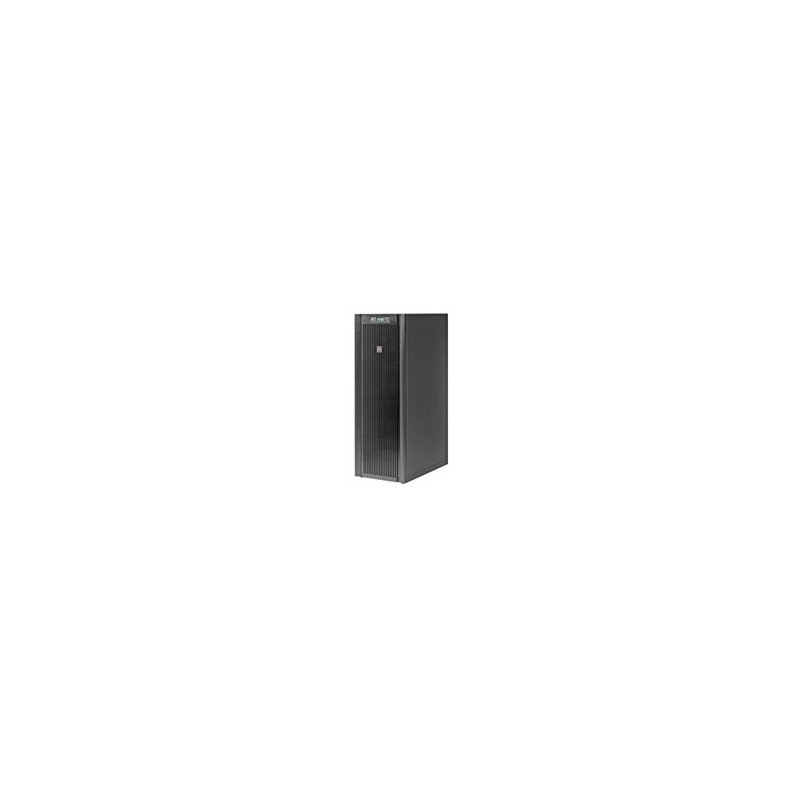

APC Smart-UPS VT, 12 kW / 15 kVA,Input 400V 3PH / Output 400V 3PH, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model



Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Start up included, User Manual



Standard Lead Time: Usually Ships within 2 Weeks
Battery typeVRLA
Colour of productBlack
Dimensions (WxDxH)559 x 813 x 1499 mm
Maximum current21 A
Noise level64 dB
Non-operating altitude0 - 15000 m
Operating altitude0 - 999.9 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections1 x Hard Wire 4-wire (3PH + G) 1 x Hard Wire 5-wire (3PH + N + G) 1 x Screw Terminals
Output power12000 W
Output power capacity (VA)15000 VA
Output voltage note380: 400 / 415 V
Package dimensions (WxDxH)650 x 1062 x 1643 mm
Package weight445910 g
Power supply input frequency40/70 Hz
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Weight415000 g
