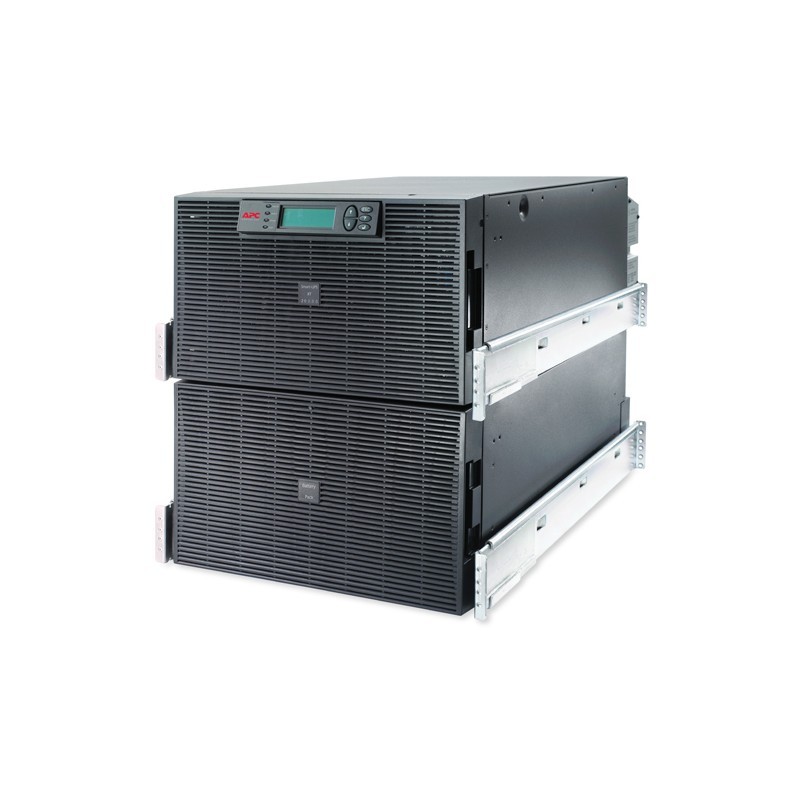

APC Smart-UPS RT 20kVA RM 230V
  • APC Smart-UPS RT 20kVA RM 230V
  • APC Smart-UPS RT 20kVA RM 230V
  • APC Smart-UPS RT 20kVA RM 230V

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS RT, 16 kW / 20 kVA,Input 230V / Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12 U.



Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card.
Battery recharge time2.5 h
Battery technologySealed Lead Acid (VRLA)
CertificationEN/IEC 62040-2,EN/IEC 62040-1-1,VDE
Colour of productBlack
Dimensions (WxDxH)432 x 773 x 533 mm
Ethernet LAN (RJ-45) ports quantity1
Input connection type(1PH+N+G), (3PH + N + G)
InterfaceDB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Maximum current105 A
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections(1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G), (8) IEC 320 C19
Output power16000 W
Output power capacity (VA)20000 VA
Output voltage note230/240
Package dimensions (WxDxH)610 x 1003 x 990 mm
Package weight314270 g
Power supply input frequency40/70 Hz
Replacement battery cartridgeRBC44
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 45 °C
Typical backup time at full load4.9 min
Typical backup time at half load15.3 min
Weight247730 g
