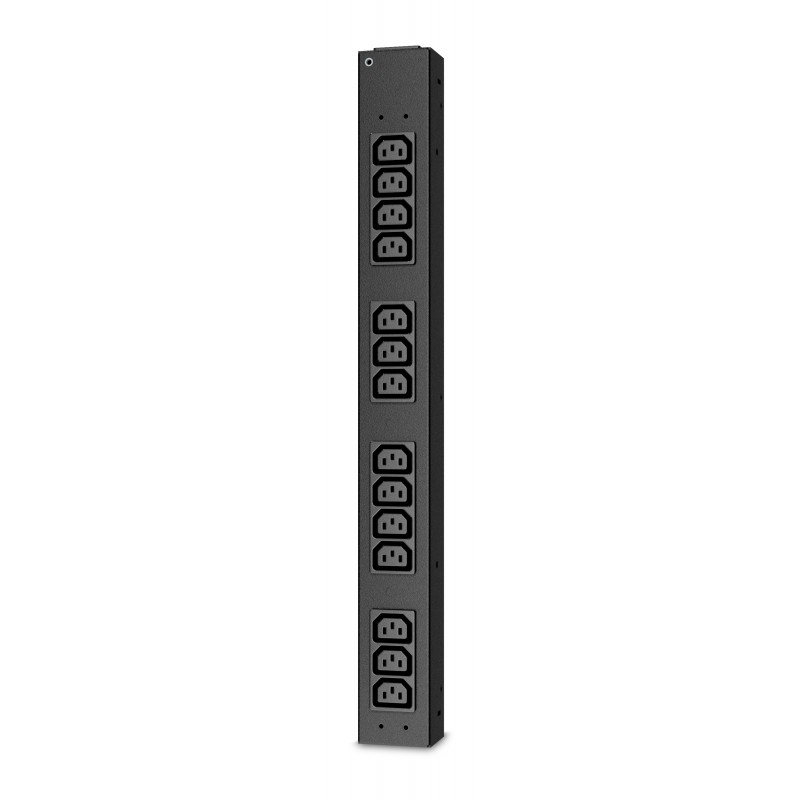

APC AP6003A
  • APC AP6003A
  • APC AP6003A
  • APC AP6003A
  • APC AP6003A
  • APC AP6003A
AC outlet typesC13 coupler
AC outlets quantity14 AC outlet(s)
CertificationcUL, UL, REACH
Colour of productBlack
Dimensions (WxDxH)56 x 47 x 523 mm
Input connection typeIEC-320 C20
Input frequency50/60 Hz
Maximum current20 A
Maximum input current per phase20 A
Maximum total current draw per phase20 A
Nominal input voltage230 V
Nominal output voltage100-240 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 50 °C
Package dimensions (WxDxH)123 x 107 x 612 mm
Package weight2550 g
PDU typesBasic
RoHS complianceY
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-15 - 65 °C
Weight1880 g
