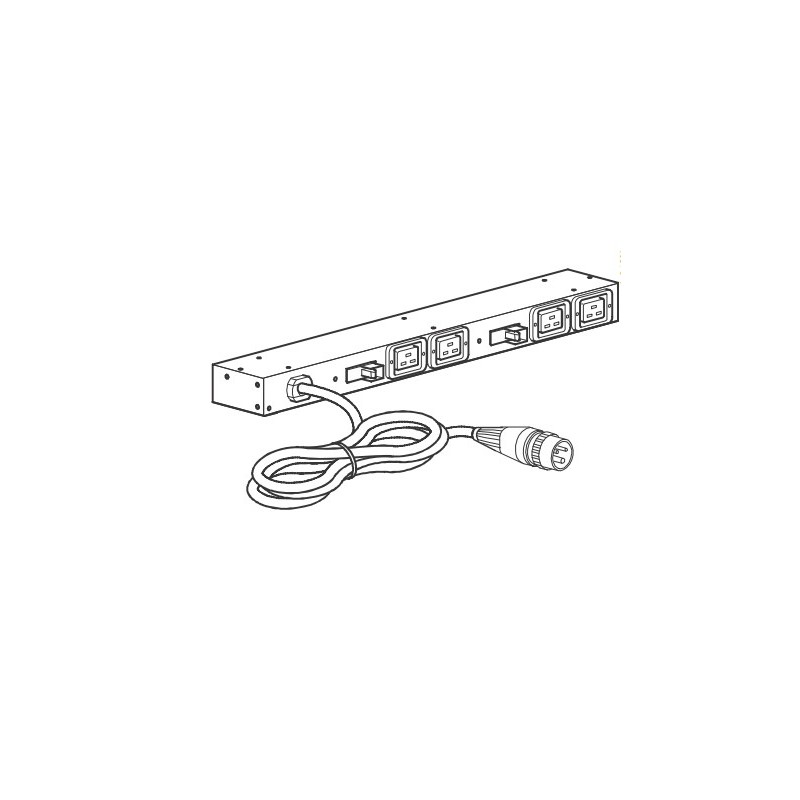

APC AP6032A
  • APC AP6032A
  • APC AP6032A
  • APC AP6032A
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
AC outlets quantity4 AC outlet(s)
Cable length3.65 m
CertificationVDE, CE
Colour of productBlack
Dimensions (WxDxH)4.36 x 9.29 x 43.81 mm
Input frequency50/60 Hz
Maximum current32 A
Maximum input current per phase32 A
MountingHorizontal
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
PDU typesBasic
Power plugC19 coupler
Rack mounting1U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-15 - 60 °C
Weight2780 g

AP6032A.pdf

APC AP6032A Data Sheet

Download (697.34k)

Similar products

  • APC Service Bypass PDU
    APC Service Bypass PDU
  • APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
    APC Service Bypass PDU 230V 16AMP W/ (6)...
  • APC In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G
    APC In-Line Current Meter, 16A, 230V,...
  • APC In-Line Current Meter
    APC In-Line Current Meter
  • APC SBPAR10K20H-WP
    APC SBPAR10K20H-WP

APC AP6032A

Rack PDU, Basic, 0U/1U, 220-240V, 32A, (4) C19, Black

AP6032A

Out of Stock

£202.55
£168.79 Ex VAT.
