APC AP8888
  • APC AP8888
  • APC AP8888
  • APC AP8888
  • APC AP8888
  • APC AP8888
  • APC AP8888
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity42
Cable length1.83 m
CertificationcUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Colour of productBlack
Dimensions (WxDxH)56 x 51 x 1829 mm
DisplayLCD
Input connection typeIEC 309 60A 3P+N+E
Input frequency50/60 Hz
Load capacity23000 VA
Maximum current40 A
Maximum input current per phase40 A
Maximum total current draw per phase32 A
MountingHorizontal/Vertical
Nominal input voltage400 V
Nominal output voltage240 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 55 °C
Output voltage240 V
Package dimensions (WxDxH)221 x 112 x 2149 mm
Package weight14050 g
PDU typesMetered
Power protection featuresOverload
Rack mounting0U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Weight10100 g

Similar products

  • APC Service Bypass PDU
    APC Service Bypass PDU
  • APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
    APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
  • APC In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G
    APC In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G
  • APC In-Line Current Meter
    APC In-Line Current Meter
  • APC SBPAR10K20H-WP
    APC SBPAR10K20H-WP

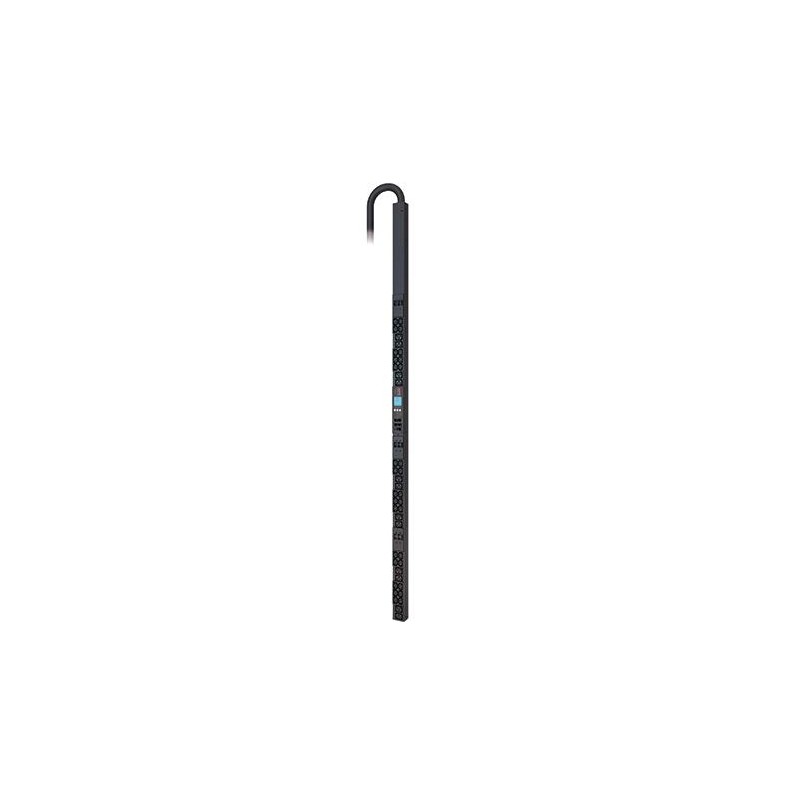

APC AP8888

PDU 2G, Metered, ZeroU, 23kW, 240V, 32A, 50/60Hz, 30xC13 & 12xC19, 10.1kg, Black

AP8888

In Stock

£2,242.80
£1,869.00 Ex VAT.
