APC AP8459EU3
  • APC AP8459EU3
  • APC AP8459EU3
  • APC AP8459EU3
Metering-by-Outlet capability



Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity24
Cable length3.0 m
CertificationEN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE\nREACH
Colour of productBlack
Dimensions (WxDxH)56.0 x 51.0 x 1829.0 mm
Input frequency50/60 Hz
LED indicatorsYes
Maximum current16 A
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Mountingvertical
Nominal input voltage200-230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Output connections21 x C13 & 3 x C19
Package dimensions (WxDxH)163.0 x 117.0 x 2037.0 mm
Package weight9030 g
PDU typesMetered
Rack mounting0U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Weight6760 g

Similar products

  • APC Service Bypass PDU
    APC Service Bypass PDU
  • APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
    APC Service Bypass PDU 230V 16AMP W/ (6)...
  • APC In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G
    APC In-Line Current Meter, 16A, 230V,...
  • APC In-Line Current Meter
    APC In-Line Current Meter
  • APC SBPAR10K20H-WP
    APC SBPAR10K20H-WP

APC AP8459EU3

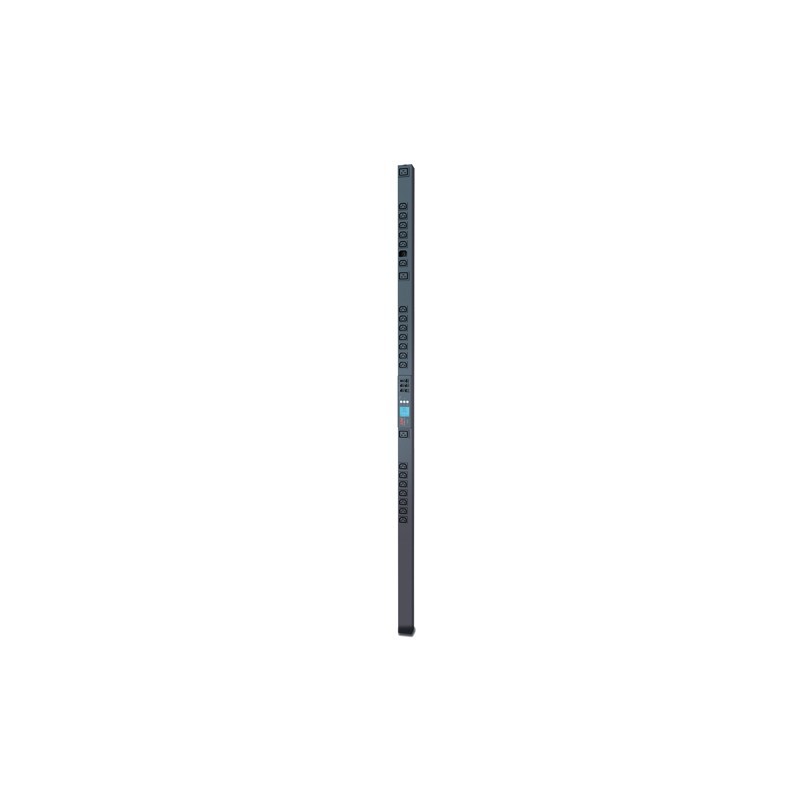

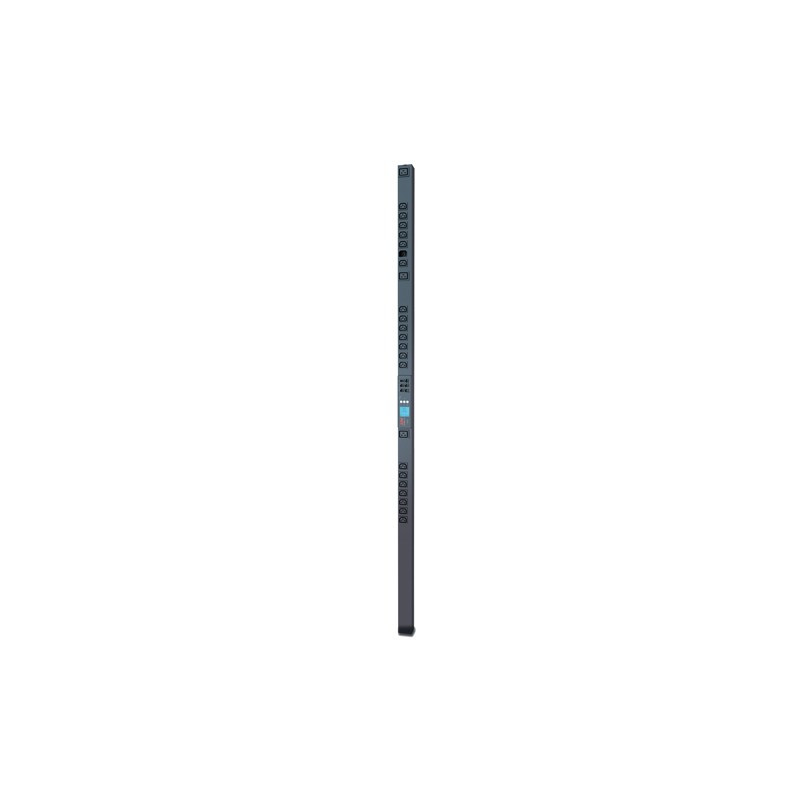

Metered-by-Outlet Rack PDU 2G, 230V, 21 x C13 & 3 x C19 Out, IEC 309 16A 2P+E In, 0U

AP8459EU3

Out of Stock

£1,200.91
£1,000.76 Ex VAT.
