Simplify installation at half the cost

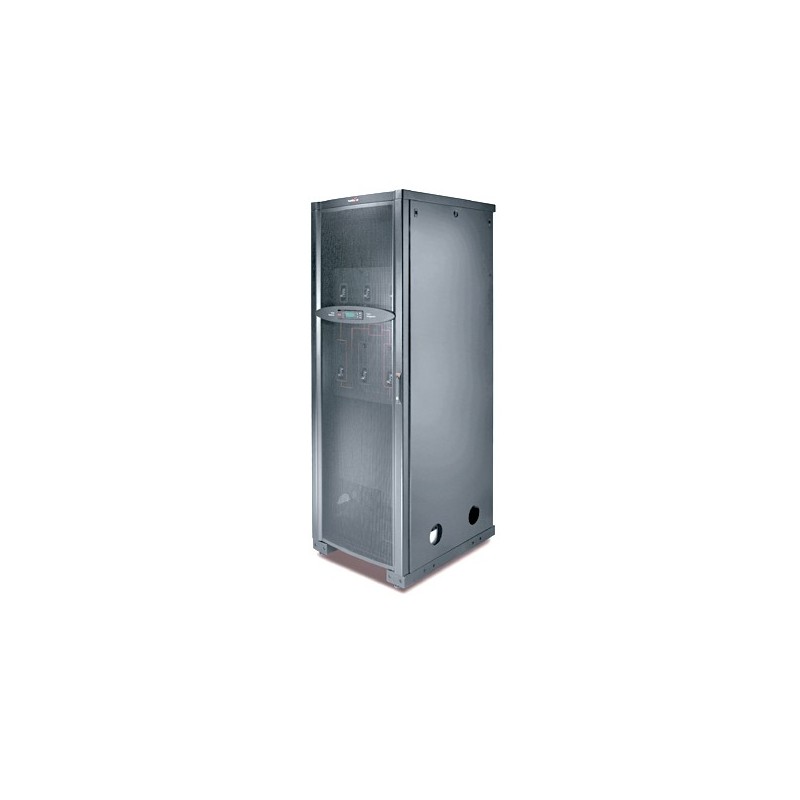

The Configure-to-order (CTO) process allows for the pre-installation of pretested breakers, cut-to-size power whips, load-test ports, and branch circuit monitoring boards. Build your InfraStruXure PDU to your exact specifications to increase speed of deployment, reliability, and cost savings. Integrated System Bypass Panel allows for UPS isolatation from the critical load. Equipped with circuit breaker panels to effectively distribute power to connected loads.
The Configure-to-order (CTO) process allows for the pre-installation of pretested breakers, cut-to-size power whips, load-test ports, and branch circuit monitoring boards. Build your InfraStruXure PDU to your exact specifications to increase speed of deployment, reliability, and cost savings. Integrated System Bypass Panel allows for UPS isolatation from the critical load. Equipped with circuit breaker panels to effectively distribute power to connected loads.
| Colour of product | Black |
| Dimensions (WxDxH) | 737 x 864 x 2159 mm |
| Maximum input current per phase | 173 A |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output voltage | 230 V |
| Package dimensions (WxDxH) | 914 x 1219 x 2261 mm |
| Package weight | 629.55 kg |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | -15 - 45 °C |
| Weight | 584.09 kg |
