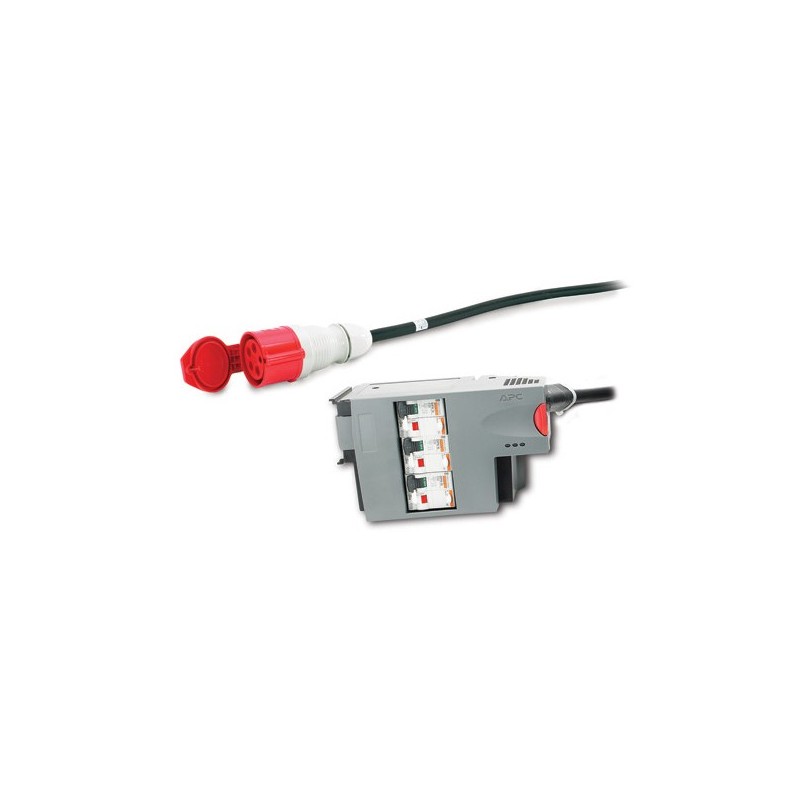

APC 3 Pole 5 Wire RCD 32A 30mA IEC309
APC Modular Power Accessories , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Output: 400V 3PH , Output Connections: IEC 309 32A.

Includes: Installation guide.

- Built-in Web/SNMP management

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.

- Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

- Smallest footprint

Minimizes your real estate expenses

- System mobility

PDU equipment can easily be relocated to accommodate a changing data center environment.

- Current Monitoring

Monitors the aggregate current draw per power distribution unit.

- Local and web-based monitoring

Status available to customers both in the data center and remotely

- Multiple distribution options

Superior design flexibility enables a wide range of customer requirements to be addressed.

- Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection



Manageability

- Power monitoring

Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost

- Quick status information LEDs

Access status information about the performance of the Power Distribution Module



Convenience

- Toolless installation of breakers

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

- Global product offering

Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
Cable length10.4 m
CertificationCE,VDE
Input connection typeIEC 309 32A 3P+N+PE
Input frequency50 Hz
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Output connections1 x IEC 309 32A
Package weight7.8 kg
Weight6.9 kg
