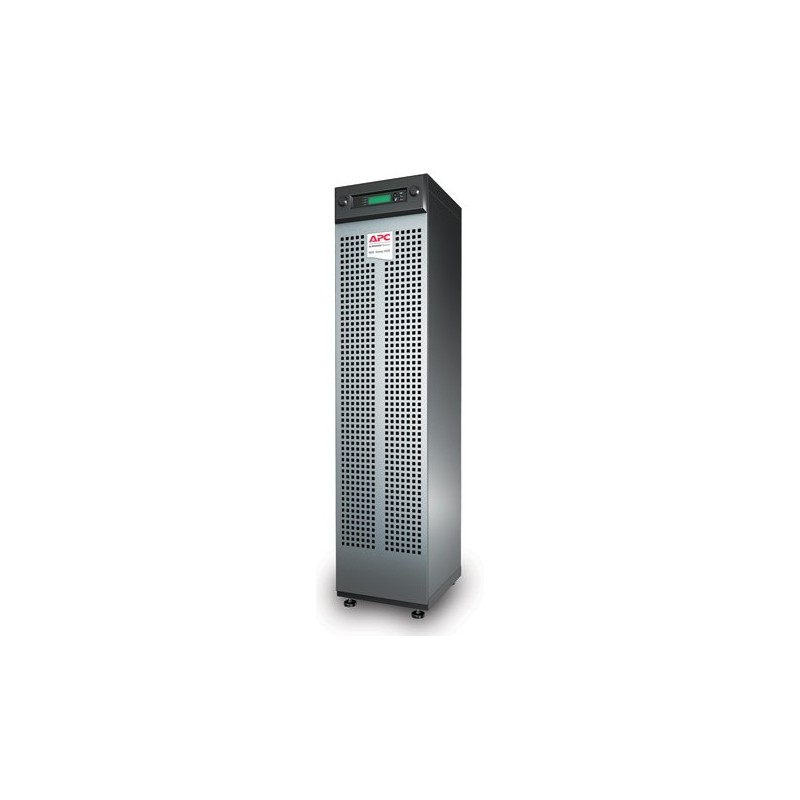

APC MGE Galaxy 3500, 8000 Watts / 10 kVA,Input 400V 3PH / Output 400V 3PH, Extended runtime model.



Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manual.



Availability

- Dual mains input: Increases availability by allowing the UPS to be connected to two separate

power sources

- Scalable runtime: Allows additional runtime to be quickly added as needed

- Hot-swappable batteries: Ensure clean, uninterrupted power to protected equipment while

batteries are being replaced

- Generator compatible: Ensure clean, uninterrupted power to protected equipment when generator power is used

- Automatic internal static bypass: Supplies utility power to the connected loads in the event of a

UPS overload condition or fault

- Battery modules connected in parallel: Delivers higher availability through redundant batteries



Serviceability

- Batteries that can be replaced by qualified personnel: Increases availability by allowing qualified

personnel to perform upgrades and replacement of the batteries reducing the Mean Time To

Repair (MTTR)

- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced

- Shippable with modules installed: Enables pre-installation UPS staging and testing and faster

installation

- Modular design: Provides fast serviceability and reduced maintenance requirements via selfdiagnosing, field-replaceable modules



Manageability

- Network manageable: Provides remote management of the UPS over the network

- InfraStruXure Central Compatible: Enables centralized management via InfraStruXure Central

- LCD: Alphanumeric display which displays system parameters and alarms

- Audible alarms: Provides notification of changing utility power and UPS conditions

- Programmable frequency: Ensures compatibility with different input frequencies

- LED status indicators: Quickly understand unit and power status with visual indicators

- SmartSlot: Customize UPS capabilities with managements cards



Total Cost of Ownership

- Input power factor correction: Minimizes installation costs by enabling the use of smaller

generators and cabling

- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature

- Manual maintenance bypass: Reduces installation costs by eliminating the need for an external

mechanical bypass

- Intelligent battery management: Maximizes battery performance, life, and reliability through

intelligent, precision charging



Protection

- Frequency and voltage regulation: Gives higher application availability by correcting poor

frequency and voltage conditions without using the battery

- Safety-agency approved: Ensures the product has been tested and approved to work safely with

the connected service provider equipment and within the specified environment. UL, FCC, CE,

C-Tick approvals

- Cold-start capable: Provides temporary battery power when the utility power is out
