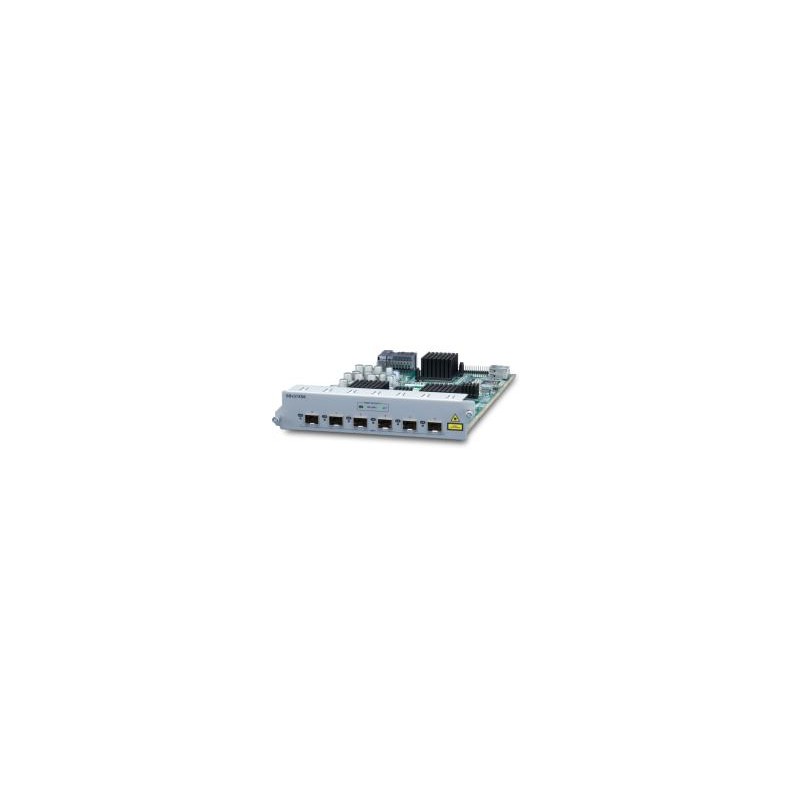

Allied Telesis AT-SBx31XS6
  • Allied Telesis AT-SBx31XS6
  • Allied Telesis AT-SBx31XS6
As a FTTx platform, the SwitchBlade x3100 can support a maximum of 400 ports (12-slot chassis) or 160 ports (6-slot chassis) using 40-port 1000Mbps CSFP-based line cards (AT-SBx31GC40). It can also support redundant 10G uplinks using 4 ports on the CFC960 or 6-port SFP+-based line cards (AT-SBx31XS6). Both the CFC and the line card support LAG and EPSR on uplinks when used as transport. The SwitchBlade x3112 can act as an aggregation hub for last-mile FTTx applications using 10G line cards. It features 80 Gigabit non-blocking throughput to each slot, thus providing a maximum level of performance for FTTx services, both 1G and 10G. Coupled with ultra-fast 960G central fabric controllers, FTTx services can operate at wirespeed connectivity.
Auto MDIX IEEEYes
CertificationFCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A\nEN60950-1 (TUV), UL60950-1 (CULUS), EN60825\nEN55024\nRoHS
CompatibilityAllied Telesis SwitchBlade x3112
Dimensions (WxDxH)206.7 x 313.2 x 40.6 mm
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Fiber optic connectorSFP+
Fiber ports quantity6
Flow control supportYes
Full duplexYes
Jumbo frames supportYes
Link aggregationYes
MAC address table32000 entries
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs4096
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)54.8 W
Quality of Service (QoS) supportYes
Queues per port8
SafetyCULUS, TUV, C-TICK, CE
Security algorithms802.1x RADIUS,SSH-2
Service level3
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Weight1060 g
Buffer size per port2 MB

AT-SBX31XS6.pdf

Allied Telesis AT-SBx31XS6 Data Sheet

Download (2.52M)

Allied Telesis AT-SBx31XS6

6 Port SFP+ Line Card, f / SwitchBlade x3112

AT-SBX31XS6

Out of Stock

£4,072.33
£3,393.61 Ex VAT.
