PCI Express Gigabit Network Adapters
Allied Telesis 2911 Series Network Adapters feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency with the benefits of low-power consumption.
High Reliability
The Allied Telesis 2911 Series Gigabit interface includes a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.
Advanced Manageability
The priority queuing offered by the 2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a powerful tool to analyze the adapter card and check specific data.
Allied Telesis 2911 Series Network Adapters feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency with the benefits of low-power consumption.
High Reliability
The Allied Telesis 2911 Series Gigabit interface includes a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.
Advanced Manageability
The priority queuing offered by the 2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a powerful tool to analyze the adapter card and check specific data.
| Cabling technology | 10/100/1000BaseT(X) |
| Certification | UL\nFCC/EN55022 Class A\nTUV\nEN55024\nCE\nC-TICK\nVCCI |
| Connectivity technology | Wired |
| Data transfer rate (max) | 100 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber optic connector | ST,SX |
| Fiber ports quantity | 1 |
| Height | 69 mm |
| Host interface | PCI-E |
| Input voltage | 3.3 V |
| Interface | Ethernet |
| Internal | Y |
| iSCSI support | Y |
| Jumbo frames support | Y |
| Linux operating systems supported | Y |
| Networking standards | IEEE 802.11a,IEEE 802.1Q,IEEE 802.2,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z |
| Number of products included | 1 pc(s) |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| PCI version | 2.0 |
| Quality of Service (QoS) support | Y |
| Receive Side Scaling (RSS) | Y |
| RoHS compliance | Y |
| Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008,Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012,Windows Server 2012 R2,Windows Server 2012 R2 x64,Windows Server 2012 x64 |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -25 - 70 °C |
| VLAN tagging | Y |
| Weight | 68 g |
| Width | 88 mm |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
| Low-profile bracket | Y |
Similar products
-
Allied Telesis AT-TRAY1
-
Allied Telesis AT-TRAY4
-
Allied Telesis AT-XEM-2XP
-
Allied Telesis AT-2701FXa
-
Allied Telesis AT-2972LX10/LC

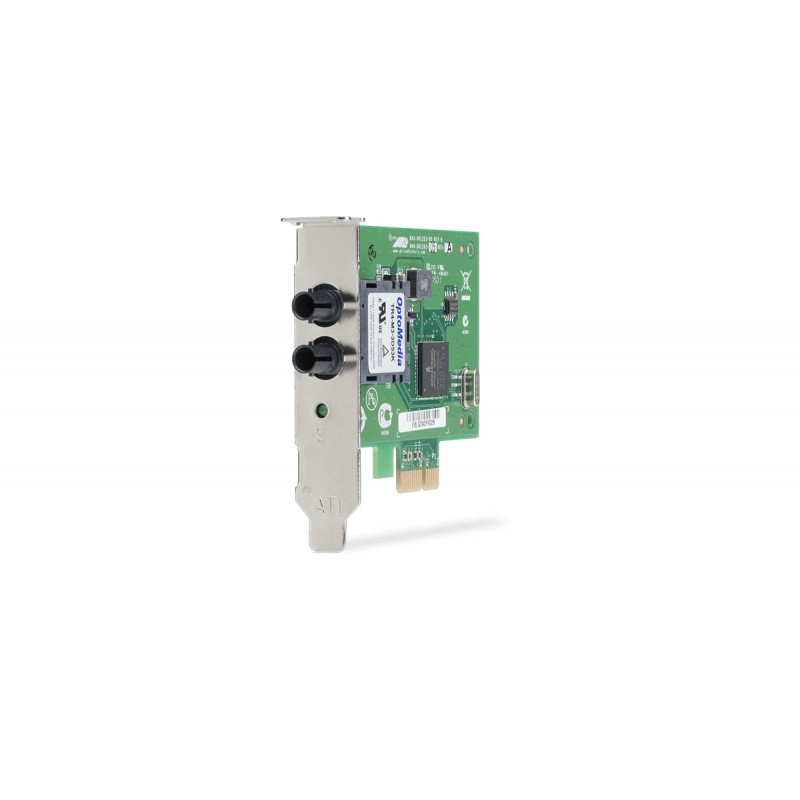

Allied Telesis 2911SX/ST
1000SX ST PCI Express x1 network adapter
AT-2911SX/ST-001
Out of Stock
£240.17
£200.14 Ex VAT.
