Overview

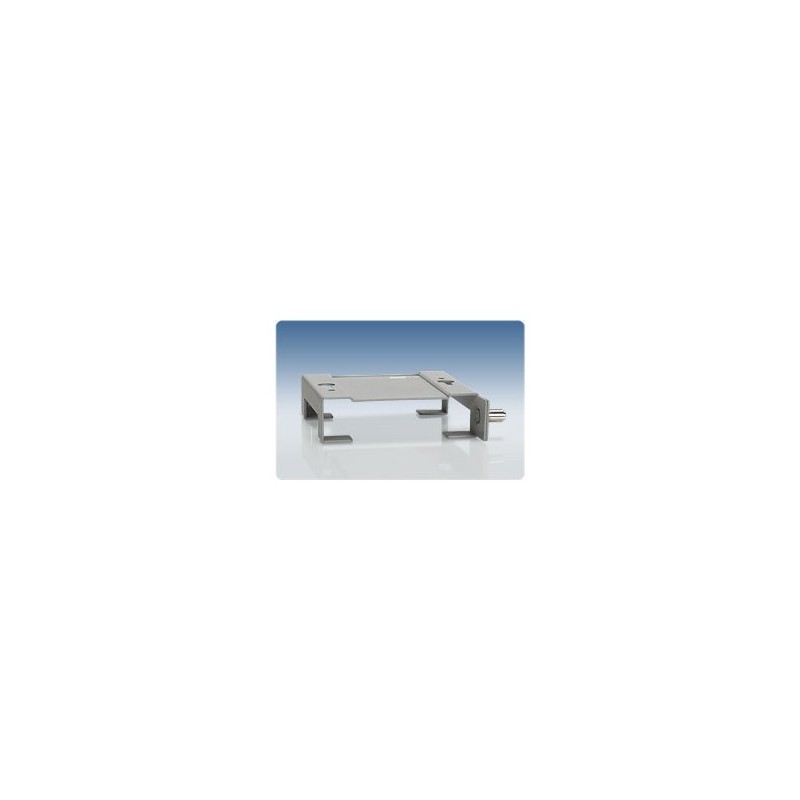

The AT-WLMT is a simple metal bracket that

allows the majority of Allied Telesis’ range of

standalone media and converters and rate

(bridging) converters to be wall-mounted.



Mounting Option Requirements

The majority of media converters are used to

convert fiber optic connections to copper. Many

installations require these media converters to

be installed in a 19-inch chassis, using a range of

mounting options including AT-TRAY1,AT-TRAY2

and the AT-MCR12. However, other applications

such as Fiber-To-The-Home (FTTH), etc, require

a small un-obtrusive mounting option that can

be discretely placed on a wall or under a table

top.The AT-WLMT was designed to meet this

demand.



Simple Installation

Each AT-WLMT has two circular holes and two

‘key’ slots on the base.The use of the circular

holes allows two countersunk screws to mount

the bracket on a horizontal surface underneath

a table top, whilst the two key slots allow the

bracket to be easily wall-mounted.



Security

Any media converter or rate (bridging) converter

mounted in an AT-WLMT chassis is held securely

in place by means of a locking screw.This ensures

that the media converter is not easily removed,

thus helping to prevent accidental breakage of

the fiber optic cable connected to the device, and

also theft of the actual unit.
