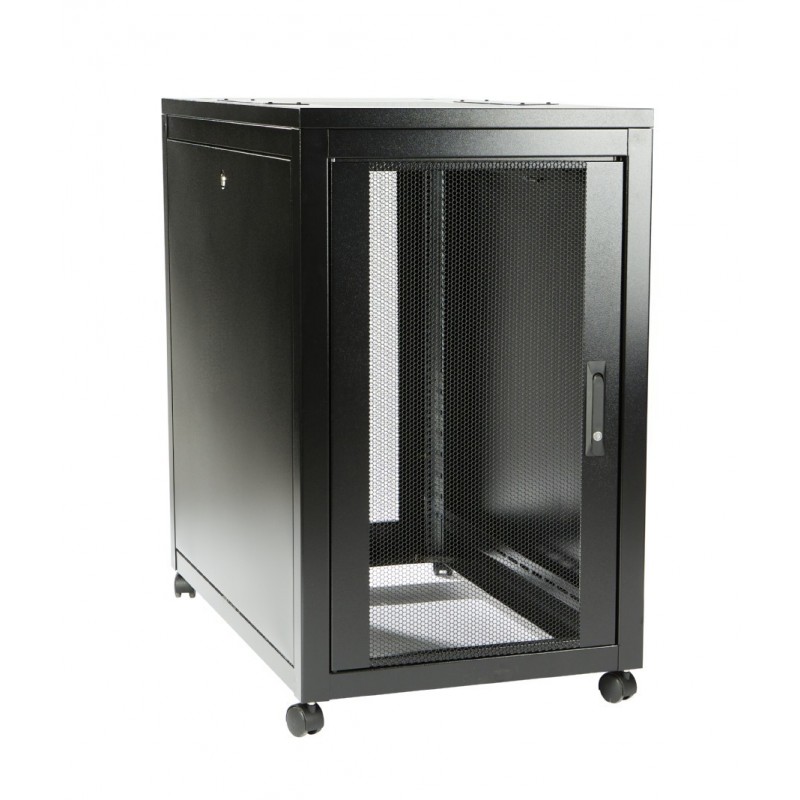

18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet
  • 18u 600mm(w) x 1000mm(d) CCS Server Cabinet

Connectix Server Cabinets have been designed to offer the optimum housing for servers and networking hardware. Mesh front and rear doors plus a vented roof add up to offer maximum ventilation; whilst the lockable doors all round provide essential security.

All doors are fully removable with quick release hinges for easy equipment installation, and the large floor aperture gives maximum cable access.

Connectix server cabinets are available in various configurations and are supplied fully assembled. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Server Cabinet Details (move mouse over to explore):

42u 600 x 1000 Cabinet shown for illustration purposes.

Features:

  • Full height adjustable 19" mounting prfofiles front and rear
  • Fully removable sides
  • Mesh doors front anr rear allows for maximum ventilation
  • Lockable doors all around provide excellent security
  • High quality paint finish
  • Supplied fully assembled



Compatible with:

Dell:
tickDell Poweredge Rackmount Servers with ReadyRails
tickDell Poweredge Rackmount Servers with RapidRails
tickDell Poweredge Tower Servers (requires either a fixed shelf or telescopic shelf)
HP
tickHP ProLiant DL Servers
tickHP ProLiant ML Servers (requires either a fixed shelf or telescopic shelf)
Fujitsu
tickFujitsu Primergy RX Rack Servers
tickFujitsu Primergy TX Tower Servers (requires either a fixed shelf or telescopic shelf)
Lenovo
tickLenovo Rack Servers
tickLenovo Tower Servers (requires either a fixed shelf or telescopic shelf)
IBM
tickIBM System X Rackmount Servers
tickIBM System X Tower Servers (requires either a fixed shelf or telescopic shelf)
Cisco
tickCisco UCS Rack Servers

If unsure or you need any advice with your rack, please call sales on 01376 333 500
Cable EntryTop & Bottom
ColoursBlack
ConstructionBolted
Depth1000mm
Front Door TypeVented Mesh
Height948mm
Internal Working Depth900mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsLockable/Removable
U Height18u
Width600mm

You might also like

  • 300mm 1u Cantilever Shelf
    300mm 1u Cantilever Shelf
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • 19" Cabinet Cable Dump Panels
    19" Cabinet Cable Dump Panels
  • 19" Horizontal & Vertical 5 Ring Cable Managment Bar
    19" Horizontal & Vertical 5 Ring Cable Managment Bar
  • 350mm Cantilever Shelf for Rax Wall Cabinets
    350mm Cantilever Shelf for Rax Wall Cabinets
  • IEC C14 Male - IEC C13 Female Power Extension/Jumper Lead
    IEC C14 Male - IEC C13 Female Power Extension/Jumper Lead
  • 100mm Cable Ties - Pack of 100
    100mm Cable Ties - Pack of 100
  • CW1308B Internal/External Phone Cable
    CW1308B Internal/External Phone Cable

18u 600mm(w) x 1000mm(d) CCS Server Cabinet

18u CCS Server Rack Designed to House Servers & 19" Equipment

009-000-130-18S

Possible 2-3 Day Lead Time.

£554.40
£462.00 Ex VAT.
