Antenna type | internal |
Built-in power socket | Y |
Cables included | LAN (RJ-45) |
Certification | CE, RoHS |
Depth | 42 mm |
Encryption button | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 3 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Height | 152 mm |
LED indicators | Activity,LAN,Power,WLAN |
Linux operating systems supported | Y |
Mac compatibility | Y |
Mac operating systems supported | Y |
Maximum data transfer rate | 1300 Mbit/s |
Maximum operating distance | 300 m |
Modulation | OFDM |
Networking standards | IEEE 1901,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Package type | box |
Plug and Play | Y |
Power consumption (typical) | 11 W |
Quantity per pack | 1 pc(s) |
Quick installation guide | Y |
Security algorithms | 128-bit AES,WEP,WPA-PSK,WPA2-PSK |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
Width | 75 mm |
Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1 |
WLAN data transfer rates supported | 300,867 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Product colour | White |
Harmonized System (HS) code | 85171800 |

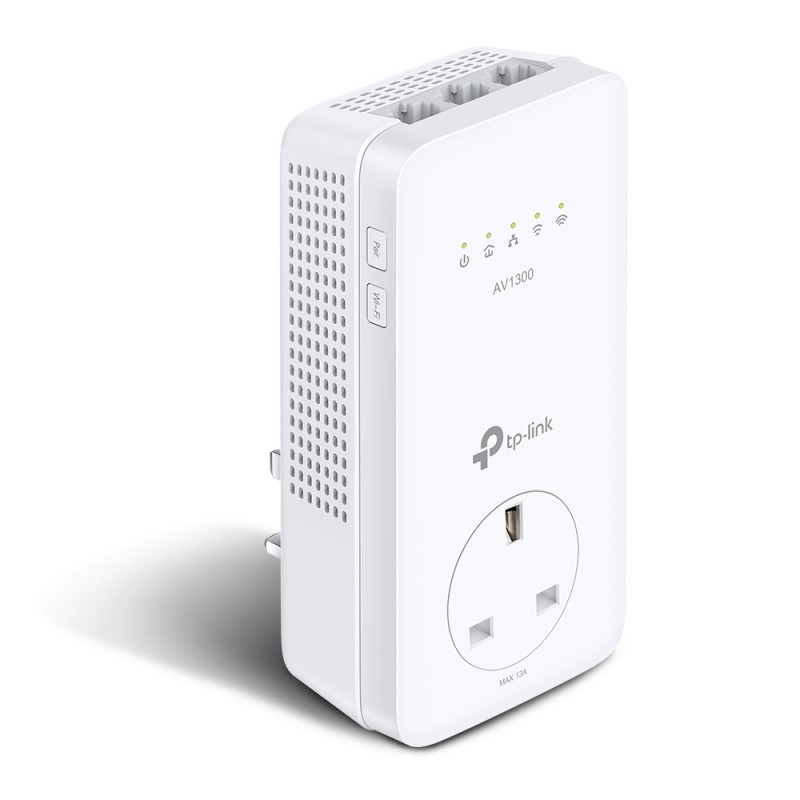

TP-Link AV1300 Gigabit Passthrough Powerline ac Wi-Fi Extender Data Sheet
Download (1.07M)3 x Gigabit RJ-45, 1 UK Socket, Wi-Fi (2.4 / 5 GHz), 300 m max, 75 × 42 × 152 mm
TL-WPA8631P
In Stock
